Description

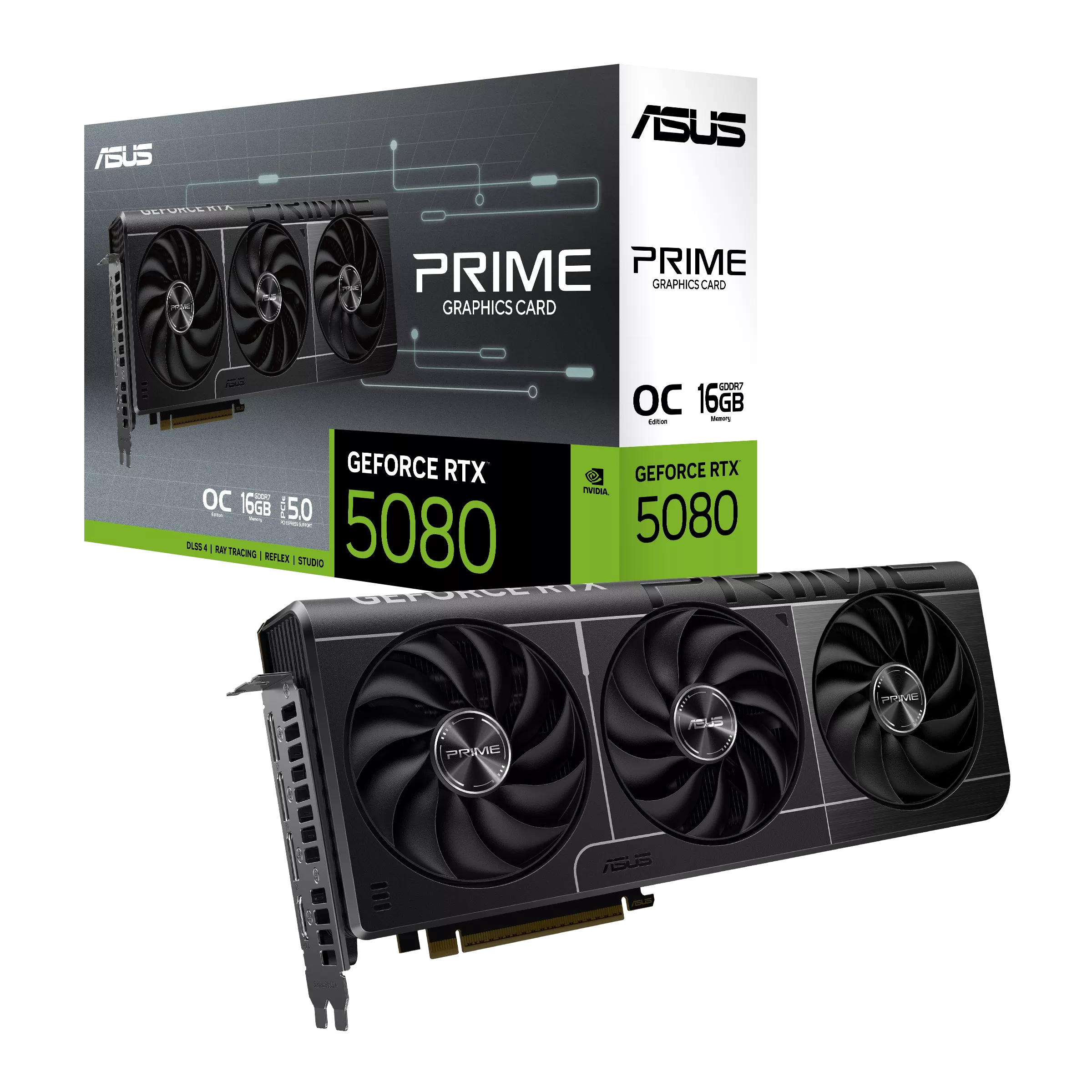

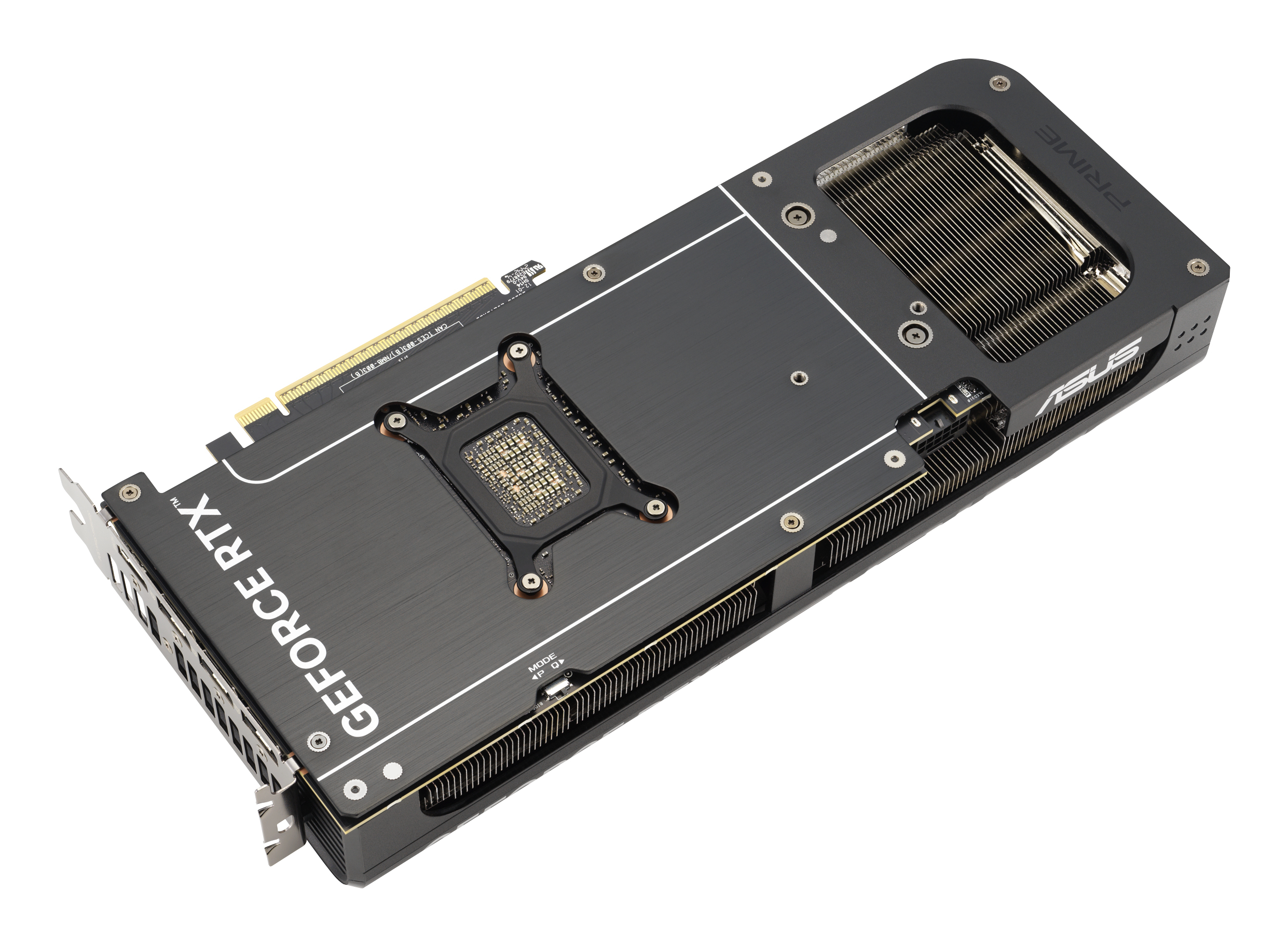

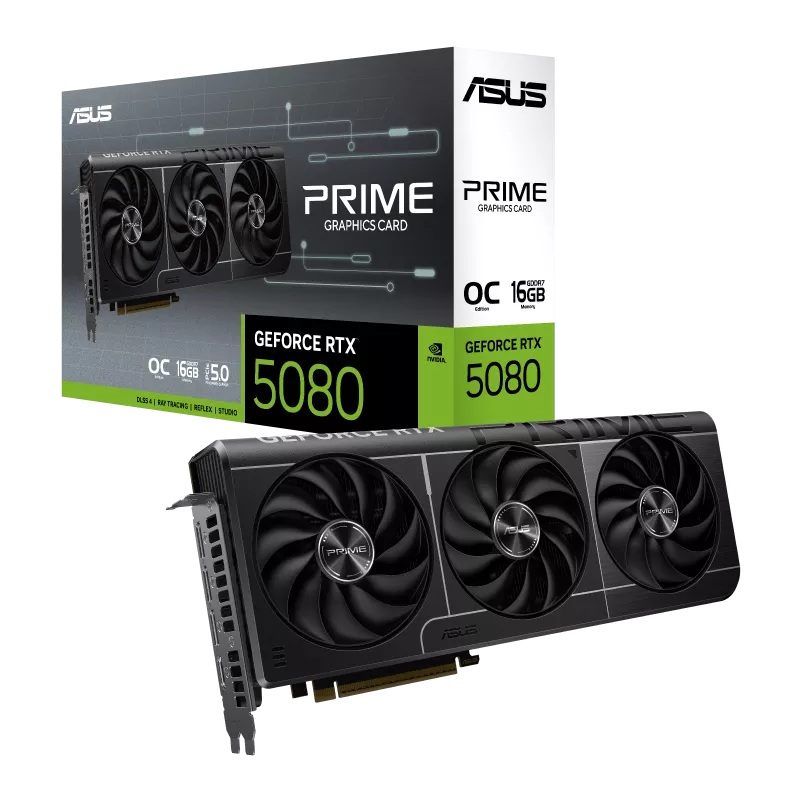

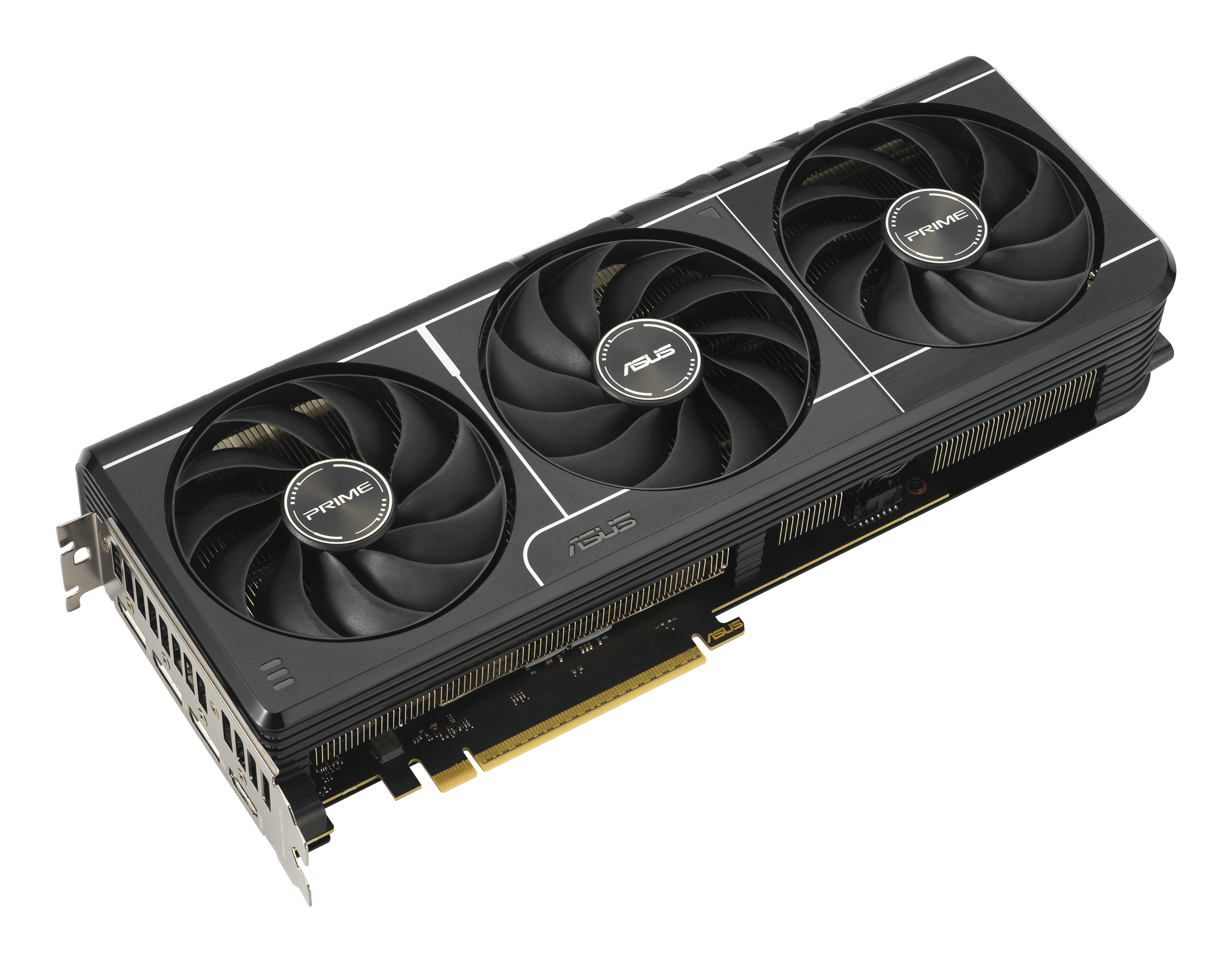

ASUS nVidia GeForce PRIME RTX5080 OC16G EVO
Experience Primal performance with the PRIME GeForce RTX 5080 EVO, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow for supreme cooling.
SPECIFICATIONS
Model
PRIME-RTX5080-O16G-EVO
Graphic Engine
NVIDIA® GeForce RTX™ 5080
AI Performance
1801 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
OC mode: 2685 MHz
Default mode: 2655 MHz (Boost Clock)
CUDA Core
10752
Memory Speed
30 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 3)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch
Recommended PSU
850W
Power Connectors
Slot
2.5 Slot
SFF Ready
Compatible
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
