Description

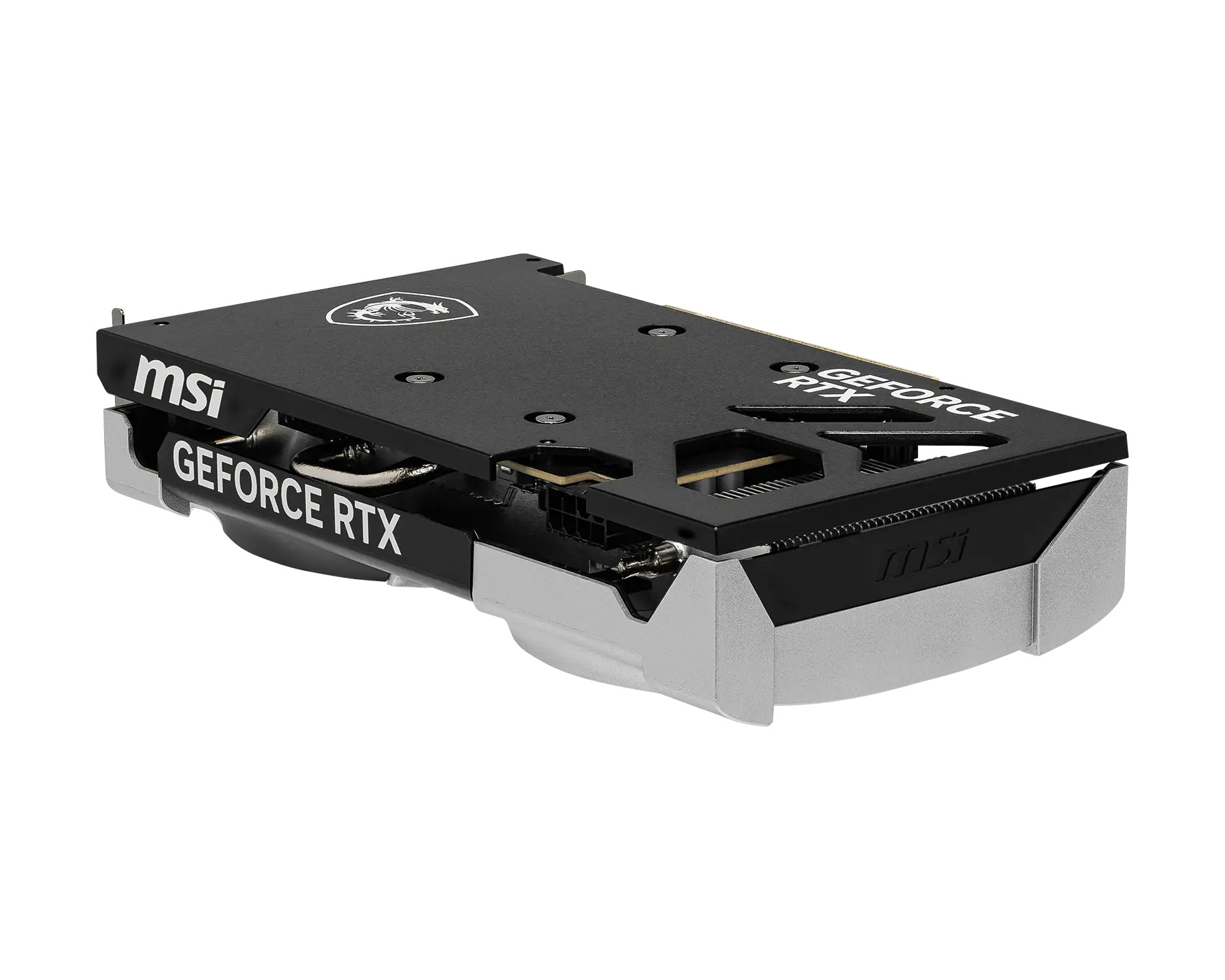

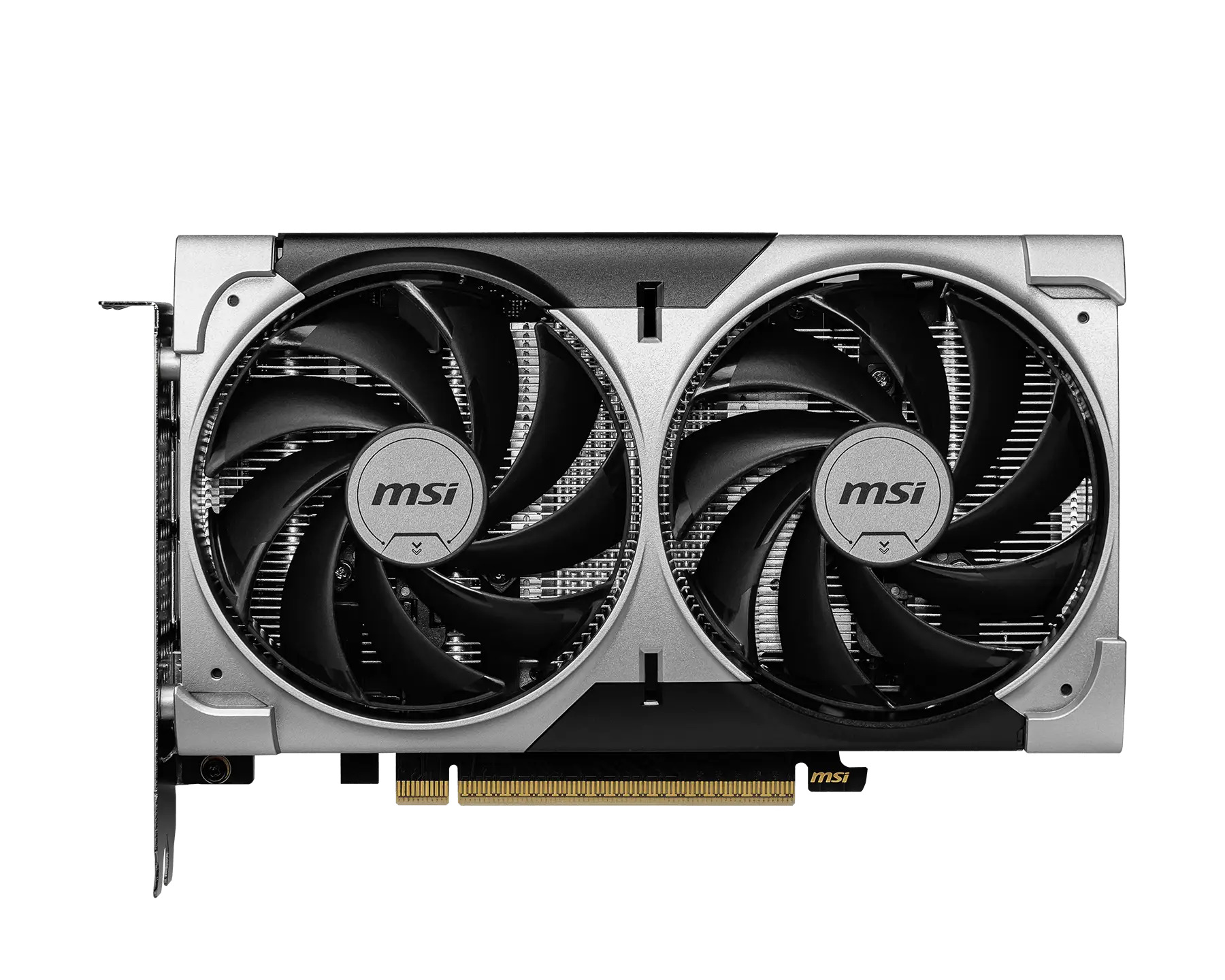

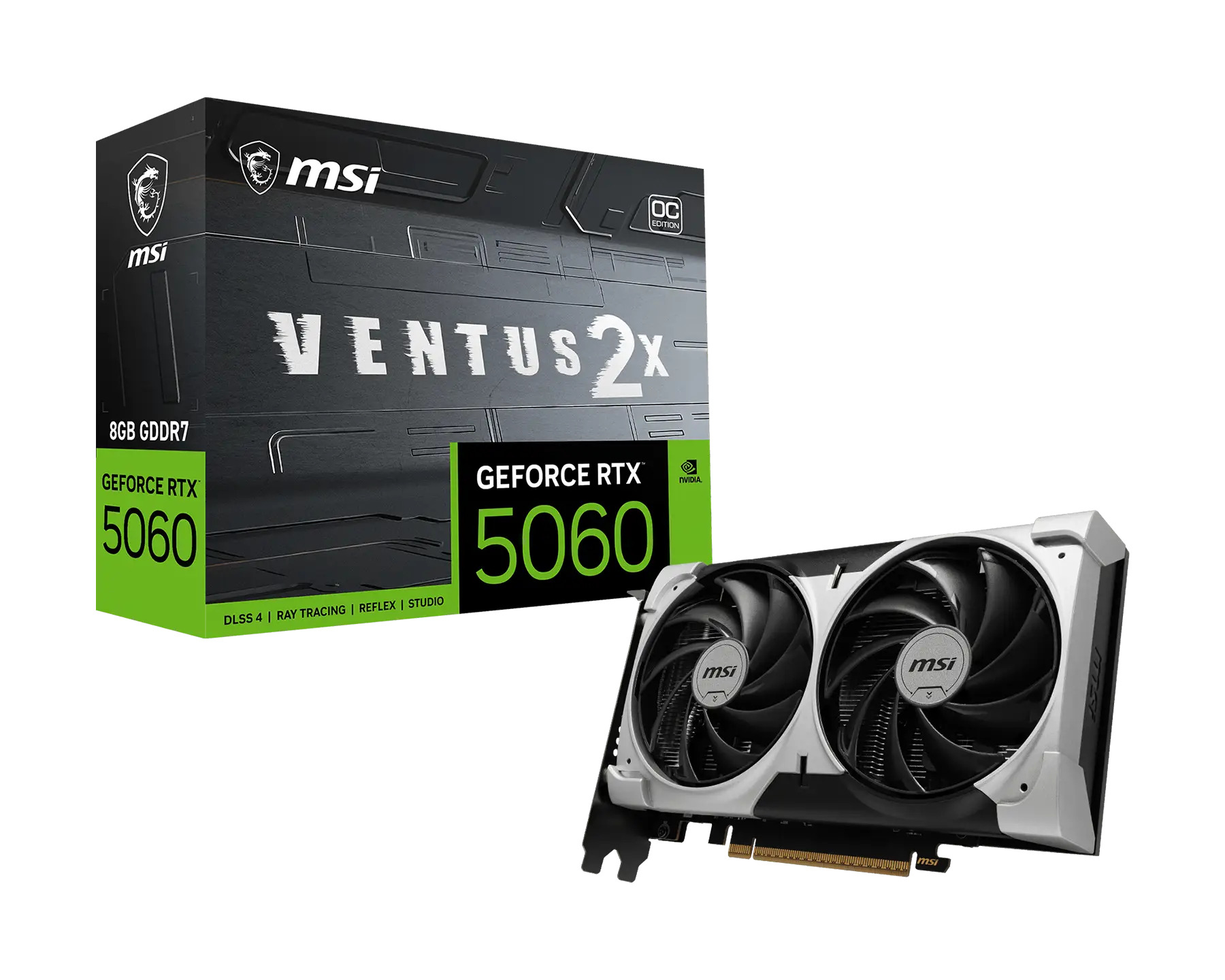

MSI nVidia GeForce RTX™ 5060 8G VENTUS 2X OC V1
•Powered by the NVIDIA Blackwell architecture and DLSS 4.5
•Core Clocks:
Extreme Performance: 2535 MHz (MSI Center)
Boost: 2527 MHz
•TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
•Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
•Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
•MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
•Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
SPECIFICATIONS
Marketing Name GeForce RTX™ 5060 8G VENTUS 2X OC V1
Model Name G5060-8V2CV1
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2535 MHz (MSI Center)
Boost: 2527 MHz
CUDA® CORES 3840 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit
Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 145 W
Power connectors 8-pin x1
Recommended PSU 550 W
Card Dimension (mm) 197 x 120 x 41 mm
Weight (Card / Package) 548 g / 840 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
