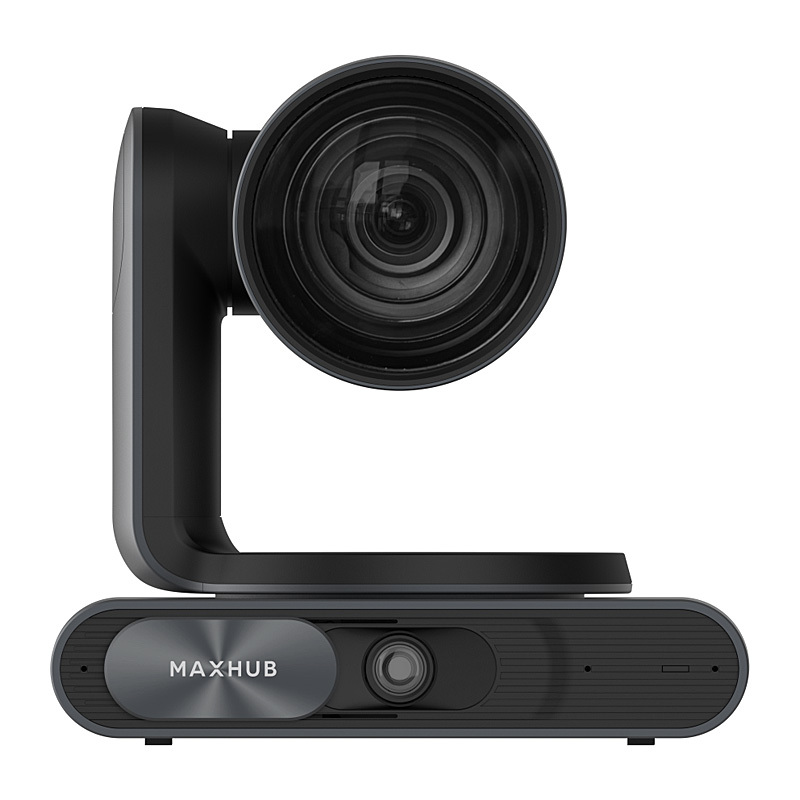

4K PTZ, 12x optical zoom, 90 FOV, dual camera system, auto framing, speaker tracking, presenter tracking, 10 preset, IR remote, support POE, Teams certified

Tech specs

Interface	USB-C
PoE	Yes
Length	5m

Full specification

Features

Dual Lens:
4K Camera 12x Optical Zoom AI Powered. 120° FOV wide angle lens detects participants in real-time while directing the PTZ Camera with best view.
12x Optical Zoom:
The 12X optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality output.
AI Power:
Auto Framing
Speaker Tracking
Presenter Tracking
Manage And Control
Remotely manage and control via MAXHUB Pivot or room control on MAXHUB Microsoft Teams Rooms products.
Privacy Guarantee:
When not in use, PTZ camera tilts downward and electric privacy cover would remain closed.
Flexible Installation:
With PoE+, a single Cat5e/Cat6e cable supports IP Streaming and power.

Specifications:

Dual Camera

PTZ Camera
- Image sensor: Sony 4K , 8.42M pixel
- Video outputs (USB 3.0): H.264/MJEPG up to 2160p@30fps,
  YUV up to 1080p@30fps
- Video outputs (USB 2.0) H.264/MJEPG up to 1080p@30fps ;
- Video outputs (HDMI) H.264/MJEPG up to 2160@30fps ;
- Video outputs (IP) H.264/MJEPG up to 2160p@30fps (first stream);
  H.264/MJEPG up to 72p@30fps (second stream)
- Optical zoom 12 x
- Digital zoom 3 x
- FOV: DFOV 90°/ HFOV 80°/ VFOV 49.2°
- Lens focal length: 4.8mm ~ 57.8mm
- Lens F#: 1.8 ~ 3.6
- Motorized Pan & tilt: Pan: ±170°, Tilt: ±90°;
- Preset number: 10 via IR remote, 128 via RS232
- Image flip and image mirror: Yes
Panoramic Camera
- 8MP, Sony Sensor
- 120° DFOV
- Manual Tilt: ± 10°
- Electric Privacy Cover
- Camera LED Indicator
