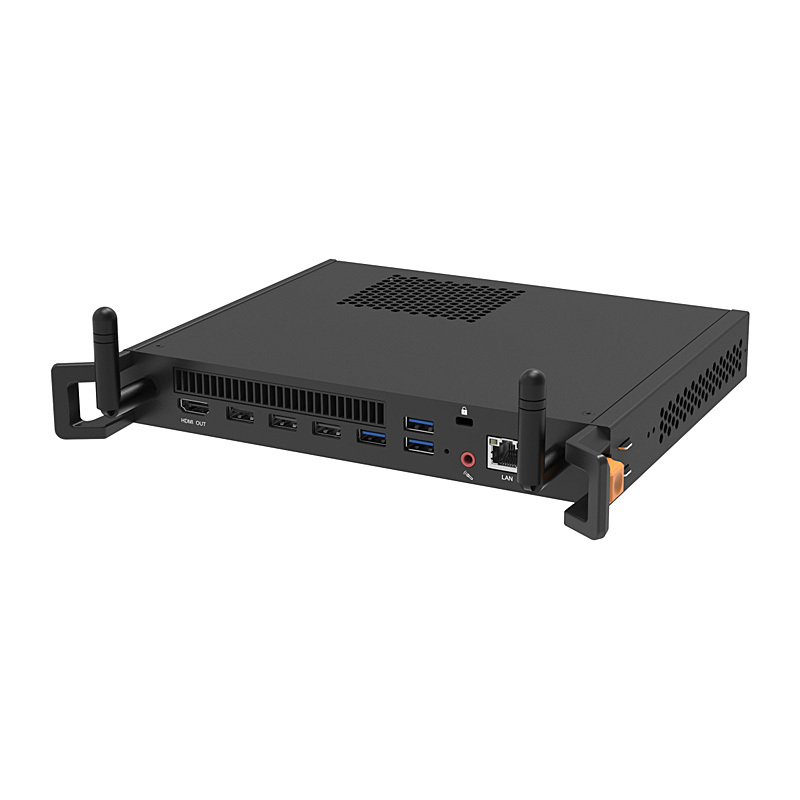

MAXHUB PC Module MT71F-i7



Specifications:

General Specification:

• Device Type: Pluggable PC Module
• Operating System: Windows 11 Pro
• CPU:  12th Generation Intel® Core™ i7
• Processor -12650H
• GPU: Intel UHD Graphics (supports 4K@60Hz)
• RAM: 16G , DDR4
• Touchscreen Compatibility: Yes
• TPM:  2.0
• Application: MAXHUB OS
• Kensington Slot: Yes

Connectivity

• HDMI Out (2.0): 1 (up to 4K@30fps)
• USB 3.0 Type-A: 3
• USB 2.0 Type-A: 3
• RI45 (Ethernet, 1000M): 1
• Microphone in: ×1
• Kingsington Security Slot: 1

Support

• For all MAXHUB Products, visit https://www.maxhub.com/service

Power

• Power Requirements: 18V DC
• Power Consumption Maximum: ≤ 110W
• Power Consumption Standby: ≤ 2.3W

Environmental Condition

• Operating Temperature: -10°~55°
• Storage Temperature: -20°~60°
• Operating Humidity: 10% - 90% RH
• Storage Humidity: 10% - 90% RH

Physical Specification

• Product Dimensions (W×H×D): 244.5 × 207.2 × 32 mm / 9.67 × 8.16 × 1.26 inch
• Package Dimensions (W×H×D): 314 × 256 × 70 mm / 12.36 × 10.08 × 2.76 inch
• Net Weight: 1.2 kg / 2.65 lbs
• Gross Weight: 1.79 kg / 3.95 lbs

Warranty

• Standard Warranty 3-year Warranty
