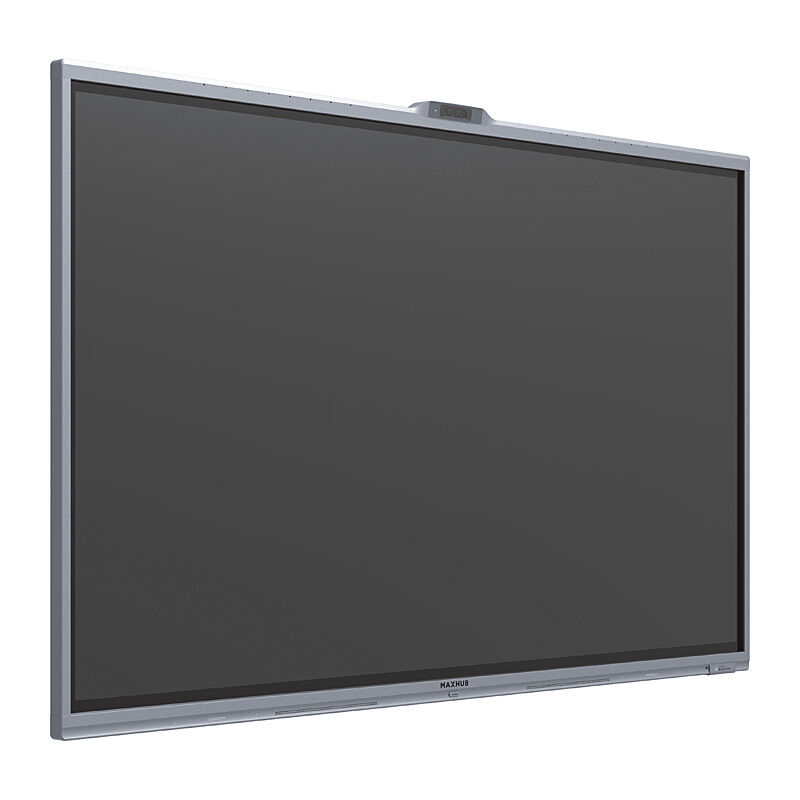

MAXHUB Xboard V7 MTR 75''

Features

• Professional 4K Display – High color accuracy, wide color gamut, NTSC 90%; non-glare technology with 25% haze
• Seamless Collaboration – Built-in touch display and Microsoft Whiteboard for real-time collaboration
• Triple-Camera System – Equipped with one wide-view lens and two tele-view lenses to provide clear views for all room participants
• AI-Powered Video Technology – Auto Framing, Speaker Tracking, Multi-Speaker Tracking, Intelligent Focus
• Premium Audio – Built-in 16 beamforming microphone array, Built-in stereo speakers, AI-powered noise reduction, full-duplex communication
• Flexible Content Share – Wired 4K content share via HDMI In; wireless content share via wireless dongle or MAXHUB Share application
• BYOD – BYOD mode with plug and play accessibility for switching between Teams Rooms mode and BYOD mode
• Pivot Secured and Managed – Win 11 IoT SAC with MAXHUB Pivot supported

Specifications

Display

• Model V7555T
• Screen Size (Inch) 75
• Aspect Ratio 16:9
• Panel VA
• Backlight DLED
• Brightness (Typ.) 350 nits
• Glass Zero parallax 3 mm thickness 9H Tempered
• Surface Technology 25% haze Non-glare technology
• Resolution 3840 × 2160
• Refresh Rate 60 Hz
• Contrast Ratio 1200:1 (typ.)
• Viewing Angle (H × V) 178° / 178°
• Color Gamut 90% NTSC
• Display Orientation Landscape
• Response Time 8 ms
• Life Time > 50,000 hours
• Operation Hours (Hours / Day) 16 / 7
• Display Color 1.07 B (10 bit)
• Color Accuracy Delta E ≤ 1.5
• Sensor Ambient light sensor Motion Sensor
• Pixel Pitch 0.42975 (H) × 0.42975 (V) mm / 0.0169 (H) × 0.0169 (V) inch
• Display Area 1650.24 (H) × 928.26 (V) mm / 64.97 (H) × 36.55 (V) inch

Connectivity

• I/O Ports (Interactive Display)
• HDMI In (2.0) × 2 To connect an external source (disabled as default, and can be enabled on MAXHUB Align app.)
• USB-A (2.0) × 1 To pair with wireless dongle-WT13M/ WT13S To connect keyboards or mouse, etc.
• Touch (USB-B 2.0) × 1 To connect a personal laptop to access to XBoard's camera & microphone and get touch back (disabled as default, and can be enabled on MAXHUB Align app.)
• Audio In × 1 To connect an external audio source to make XBoard a speaker
• Audio Out × 1 3.5 mm mini-jack, to connect an external speaker system
• RS232 × 1 9 pin
• Mic In (RJ45) × 1 To connect up to a maximum of three UC BM45 as expansion speakerphones
• Wireless Access Point Yes (for wireless presentation)

Camera

• Wide Camera 50MP × 1 DFOV 99°, HFOV 86°
• Telephoto Camera 50MP × 2 DFOV 68° (combined), HFOV 63° (combined)
• Zoom 5x hybrid zoom
• Privacy Shutter Yes

AI Features

• Auto Framing
• Speaker Tracking
• Multiple-speaker Tracking
• Intelligent Focus

Microphone

• Quantity 16-mic array
• Pick-up Angle 180°
• Pick-up Range Best distance – 8 m / 26.2 ft Maximum distance - 15 m / 49.2 ft
• Feature Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)

Audio

• Sound Channel 2.1
• Speaker Power 2×10W + 20W

Power

• Power Supply 100-240V ~ 50/60 Hz
• Standby Power ≤ 0.5 W
• Power Consumption (Typ.) 155 W
• Power Consumption (Max.) 390 W

Touch System

• Touch Technology Intelligent Touchscreen Technology (infrared recognition)
• Touch Point 50 points touch
• Object Recognition Range ≥ 1.5 mm
• Accuracy ± 0.5 mm
• Response Time ≤ 2.5 ms
• Writing Height ≤ 1 m

Environmental Condition

• Operating Temperature 0°C~40°C
• Storage Temperature -20°C~60°C
• Operating Humidity 10%~90% RH
• Storage Humidity 10%~90% RH
• Altitude Below 5000 meters

Accessory (Included in the Package)

• Wireless Module AP
• HDMI Cable (3 m / 9.8 ft ) × 1
• Power Cord × 1
• Passive Stylus × 2
• Wall Mounts Kits × 1

Certification

• Safety IEC 62368-1
• EMC Class B

Warranty

• 3-Year warranty

Physical Specification

• Dimension (W × H × D) 1709.4 × 1040.3 × 90 mm / 67.3 × 40.96 × 3.54 inch
• Shipping Dimension (W × H × D) 1863 × 1140 × 225 mm / 73.35 × 44.89 × 8.86 inch
• Thickness of Machine and Wall Mount 117 mm / 4.61 inch
• Wall-hanging Screw Spec M8 × 25 mm
• VESA 800 × 400 mm / 31.5 × 15.8 inch
• Net Weight 48 kg / 105.82 lbs
• Gross Weight 63 kg / 138.89 lbs

PC Module (Slot-in)

• CPU 12th gen Intel Core i5 – 1240p
• GPU Intel® Iris® Xe Graphics eligible
• Memory 16GB DDR4 (8GB ×2)
• Storage 256GB SSD (M.2)
• Operating System Windows11 IOT
• TPM 2.0 Yes

Input & Output

• USB-A (3.0) ×3
• HDMI In (2.0) ×1 (For content share in Teams rooms mode, up to 4K resolution on local room display)
• HDMI Out × 2 (Without actual function currently, hardware reserved for possible future use)
• RJ45 × 1 (Ethernet)
• RJ45 × 1 (For optional touch console - TCP33T (available in early Q3 2025)
• Wi-Fi Wi-Fi 6
• Bluetooth Bluetooth 5.1

Accessory (Optional)

• Mobile Stand ST33M / ST23G
• Expansion Speakerphone UC BM45
• Wireless Share Dongle WT13M / WT13S
• Touch Console TCP33T (Available in Q3 2025)
