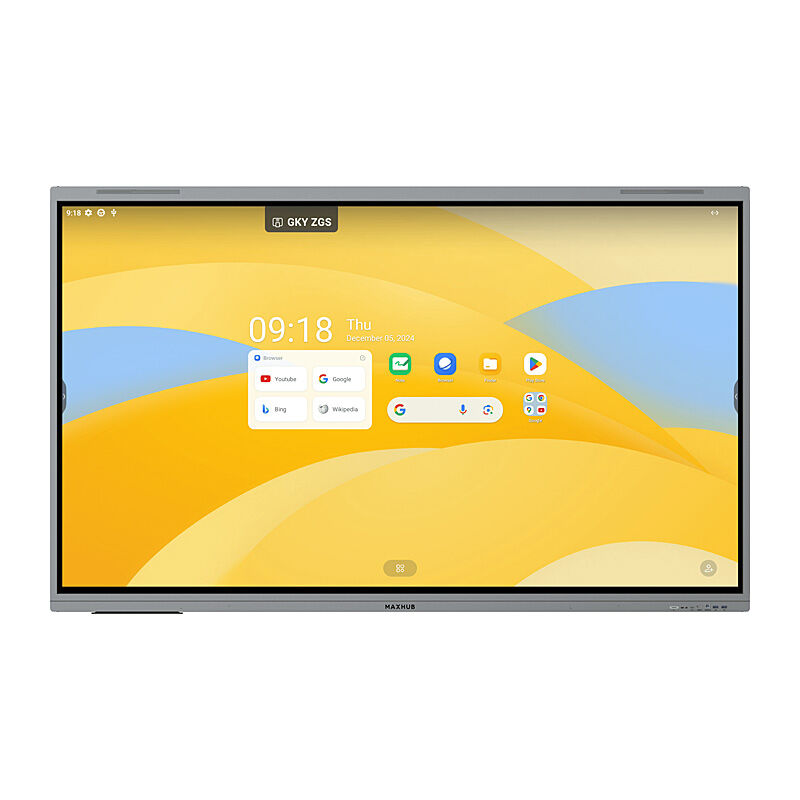

MAXHUB E series E7530 75''

Features

• Prominent Display – 4K display, 10 bit color, high color accuracy
• SkyWave Sound System – 2.2 channel speaker, 2×8W + 2×18W output
• Peak Performance – Octa?core CPU, independent NPU, 8GB RAM, 128GB ROM
• Precious Touch – MAXHUB Think&Ink Technology, 40 touch points, ±1.5 mm touch accuracy
• Classroom Care – Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification
• Unparalleled Compatibility – Android 14 system, Google EDLA certificated
• Convenient Connectivity – Full-function USB?C integrating 65W PD, video, audio, touch, and internet access
• Comprehensive Software Suite – MAXHUB EDU OS V4 with extensive education?tailored applications

Specifications

Display

• Model: E7530
• Diagonal Size: 75 inch
• Display Area: 1650.24 (H) — 928.26 (V) mm
• Screen Level: A-Level
• Brightness: 400 nits (typ.), 450 nits (max.)
• Contrast Ratio: 5,000:1 (typ.), 50,000:1 (dynamic)
• Color Depth: 1.07B (10bit)
• Color Gamut (typ.): 98% sRGB
• Color Accuracy: ?E ? 1
• Surface Technology: Anti-glare, 25% haze
• Aspect Ratio: 16:9
• Resolution: 3840 — 2160
• Panel Type: VA
• Viewing Angle: 178° (H/V)
• Response Time: 6.5 ms
• Backlight Unit: DLED
• Backlight Life (typ.): ? 60,000 Hours
• Refresh Rate: 60Hz
• Glass: Zero parallax, 3 mm thickness, 9H tempered
• Sensors: Ambient light sensor, Ambient color temperature sensor
• Eyes Care: TœV Flicker Free, TœV Low Blue Light

Built-in System

• Operating System: Android 14.0
• Certification: Google EDLA
• RAM: 8GB
• ROM: 128GB
• SoC Process: 8 nm
• CPU: A72—4 + A53—4 octa-core, 2.2GHz
• GPU: Mali G52 MC3
• NPU: 6 TOPS

Touch System

• Technology: Infrared recognition
• Touch Points: 40
• Object Recognition Range: 3 mm
• Accuracy: ± 1.5 mm
• Response Time: ? 5 ms
• Writing Height: ? 2 mm
• System: MAXHUB Think&Ink (Touch Return)
• OS Compatibility: Windows7/8/10/11, Android, Linux, Mac OS X, Chrome

Connectivity

• OPS Slot — For system upgrades
• HDMI IN — 3 — Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC
• DP IN — 1 — 4K@60Hz, HDCP 1.4/2.2/2.3
• USB 2.0 — 1
• USB 3.0 — 4
• Touch — 2
• AUDIO IN — 1 — 3.5 mm Jack
• VGA IN — 1 — Up to 1080P@60Hz
• RS232 — 1 — Baud rate 9600
• RJ45 IN — 1 — 10M/100M/1000Mbps
• TF Card Port — 1 — Expandable up to 1TB
• USB Type-C — 2 — Video/audio, touch, charging, LAN sharing (Front: 65W PD, Rear: 15W PD)
• HDMI OUT — 1 — Up to 4K@60Hz
• AUDIO OUT — 1 — 3.5 mm Jack
• SPDIF — 1 — PCM output format
• RJ45 OUT — 1 — 10M/100M/1000Mbps
• Front USB: 2 (USB 2.0 — 1, USB 3.0 — 1)
• Rear USB: 2 (USB 3.0 — 2)
• Wireless: Bluetooth, Wi-Fi 6 (802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz)
• Module Slots: 2 (Wi-Fi Module SI07B supported)

Audio

• Audio System: SkyWave Sound System
• Sound Channel: 2.2
• Speaker Power: 2—8W + 2—18W (output), 2—12W + 2—25W (maximum)
• Sound Pressure Level: 88 dB (1W, 1m)

Physical Specification

• Dimension (L—H—D): 1711—1040—100 mm
• Shipping Dimension (L—H—D): 1863—1163—225 mm
• Thickness (Machine + Wall Mount): 129 mm (WIB9060H)
• Wall-hanging Screw: M4—8 mm VESA
• Net Weight: 49.90 kg
• Gross Weight: 62.00 kg

Power

• Power Supply: AC 100-240V~ 50/60Hz 4.0A
• Standby Consumption: ? 0.5W
• Typical Consumption: 170W
• Power Saving: Energy Star Certification

Optional Modules

• USB Camera
• Video Bar
• OPS Module (OPS62A/OPS72A)
• Sensor Box UC W31 / UC S07
• WL10C
• Mobile Stand (ST33M, ST23G, EST09)

Environment

• Operating Temperature: 0?–40?
• Operating Humidity: 10%–90% RH
• Storage Temperature: -20?–60?
• Storage Humidity: 10%–90% RH
• Altitude: Below 5000 meters
• Dust Resistance: IP5X-rated

Software System

• OS: MAXHUB EDU OS V4
• Screen Sharing
• Whiteboard Tool
• Device Management
• MAXHUB Connect, MAXHUB Class Pro, MAXHUB Pivot
• Google Apps: Google Play, Google Drive, Google Meet, Google Maps, YouTube
• Other Apps: Browser, Cloud Drive, Note, Palette

Accessories

• Power Cord (3 m — 1)
• HDMI Cable (3 m — 1)
• Remote Control — 1
• Stylus — 2
• Display Bracket — 2
• Wall Mount Bracket WIB9060H — 1
• Wi-Fi Module SI07B — 1
