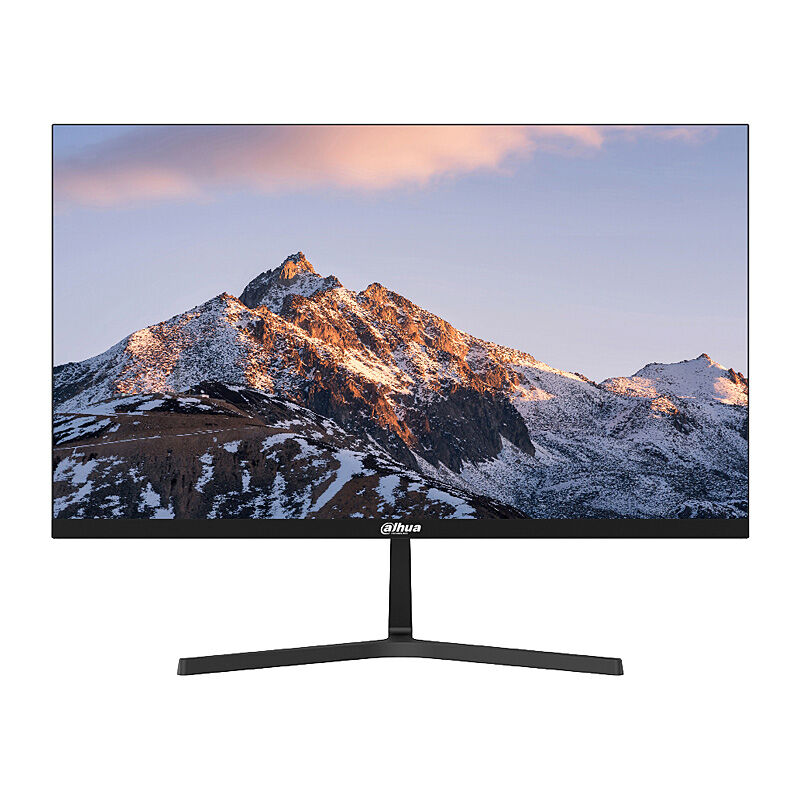

DAHUA B201S 24'' IPS Monitor

Features

• A wide 178° horizontal and 178° vertical viewing angle
• Supports HDMI and VGA signal input
• Anti‑blue light technology helps protect your eyes from strain and injury
• Elegant thin‑frame design with a sturdy metal base

Specifications

• Model: DHI-LM24-B201S
• LCD Technology: IPS
• Backlight: ELED
• Screen Size: 23.8 inch
• Aspect Ratio: 16:9
• Viewing Size: 527.04 (H) × 296.46 (V) mm
• Screen-to-Body Ratio: ≥90%
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.2745 mm × 0.2745 mm
• Pixels Per Inch: 92.56
• Resolution: 1920 (H) × 1080 (V)
• Refresh Rate: 100 Hz
• Display Color: 16.7M colors
• Color Gamut: 72% NTSC
• Brightness: 250 cd/m² (max)
• Contrast Ratio: 1000:1
• Response Time: OD 5 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 25%, 3H
• Low Blue Light: Software blue light protection

Device Ports

• Input: 1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA
• Output: 1 × Audio out
• Speaker: 2 × 1 W

Power & Environmental Conditions

• Power Supply: 12 VDC, 2.5 A
• Power Consumption: 17 W (basic), 19 W (typ.), 21 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–85% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: -5° / 15°
• Product Dimensions (W × H × D): 539.2 mm × 320.4 mm × 39.1 mm (21.23" × 12.61" × 1.54"), without wall‑mount bracket
• Package Size (W × H × D): 612 mm × 405 mm × 101 mm (24.09" × 15.94" × 3.98")
• Unilateral Splicing (U/L/R/D): 2.1 mm / 2.1 mm / 2.1 mm / 15.9 mm
• Net Weight: 2.82 kg (6.22 lb)
• Gross Weight: 3.84 kg (8.47 lb)
• Casing Color: Black
• Control Mode: Five‑button
• Status Indicator Light: Yes
• Wall Mount VESA: 75 mm × 75 mm (2.95" × 2.95")

Accessory

• Power adapter
• Base
• HDMI cable
• User's manual (QR code)
• Legal and regulatory information

Optional Accessory

• Wall mount

Certification

• CE EMC
• CE LVD
• CE ERP
