Description

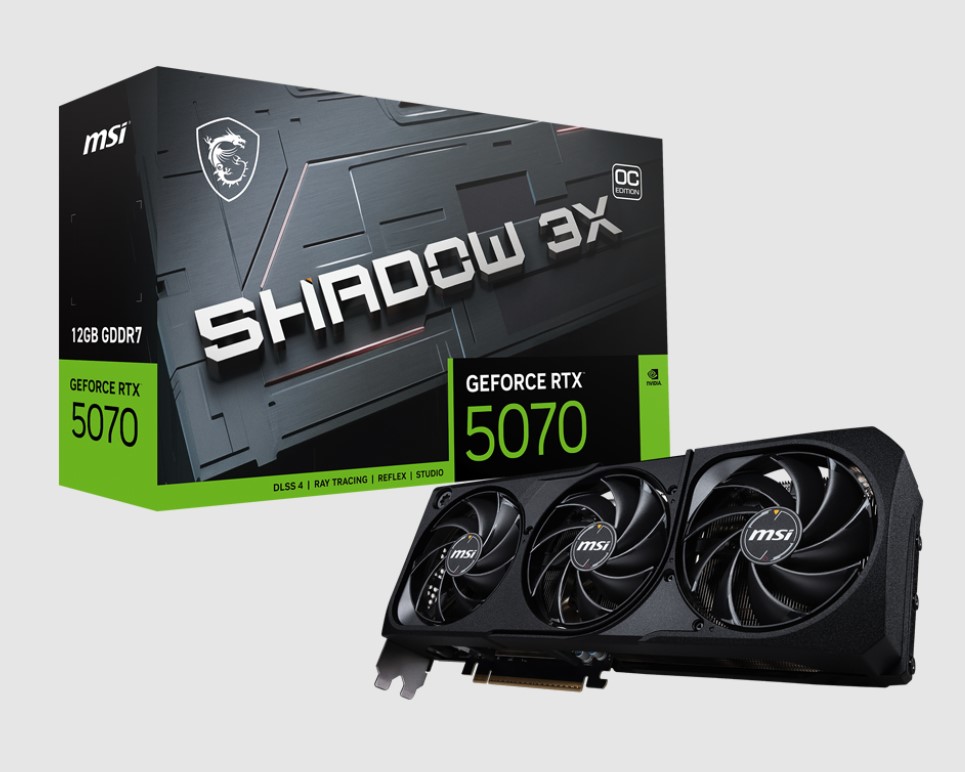

MSI nVidia GeForce RTX™ 5070 12G SHADOW 3X OC, PCI Express® Gen 5, Boost: 2542 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1
SPECIFICATIONS
Marketing Name GeForce RTX™ 5070 12G SHADOW 3X OC
Model Name G5070-12S3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250 W
Power connectors 16-pin x 1
Recommended PSU 650 W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 982 g / 1406 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
FEATURES
Triple Fan
Three fans and a huge heatsink ensure a cool and quiet
experience for you.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.
Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
