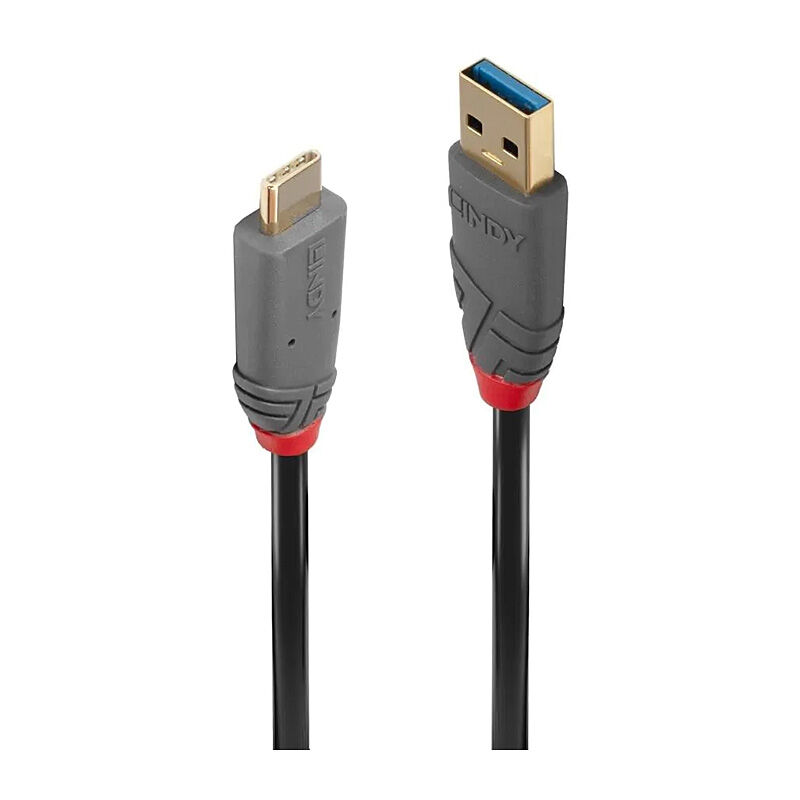

Lindy 3m USB 3 A to C 10Gbps

Features

• Professional‑grade USB 3.2 Gen 2 Type‑A to Type‑C cable for high‑performance AV and IT installations
• SuperSpeed USB 10Gbps supporting USB 3.2 Gen 2 / USB 3.1 Gen 2 / USB 3.1 data rates
• Robust TPE housing with gold‑plated connectors and contacts
• Triple‑shielded cable with corrosion‑resistant tinned copper conductors
• 10‑year warranty

Specifications

Connectors

• Connector A: USB 3.2 Type‑A Male
• Connector B: USB 3.2 Type‑C Male
• Housing material: TPE
• Shielding in head shell: Copper foil
• Connector plating: Gold
• Pin construction: Copper
• Pin plating: Gold
• Dimensions (approx.) A: 16 × 47 × 8.8 mm (0.63 × 1.85 × 0.35 in)
• Dimensions (approx.) B: 13 × 41 × 7.75 mm (0.51 × 1.61 × 0.31 in)

Cable Construction

• Length: 3 m (9.84 ft)
• Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2, USB 3.1)
• Power Delivery: Not supported
• Max power: 15 W (5 V 3 A)
• Colour: Black
• Type: Round
• Jacket diameter: 5.2 mm (0.2 in)
• Jacket material: TPE
• Conductor material: Tinned copper
• Conductor gauge (power): 22 AWG
• Conductor gauge (data): 28 AWG / 28 AWG
• Shielding: Tinned copper 65%

Specifications

• Supported bandwidth: 10 Gbps
• Maximum resolution: Not applicable
• Nominal attenuation: 0.5 MHz–15 GHz < 40 dB
• Minimum bend radius: 26 mm (1.02 in)
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: –20°C to 60°C (–4°F to 140°F)

Miscellaneous

• Packaging type: Polybag
• Warranty: 10 years
• Product compliance: RoHS, REACH, California Proposition 65 & UL
