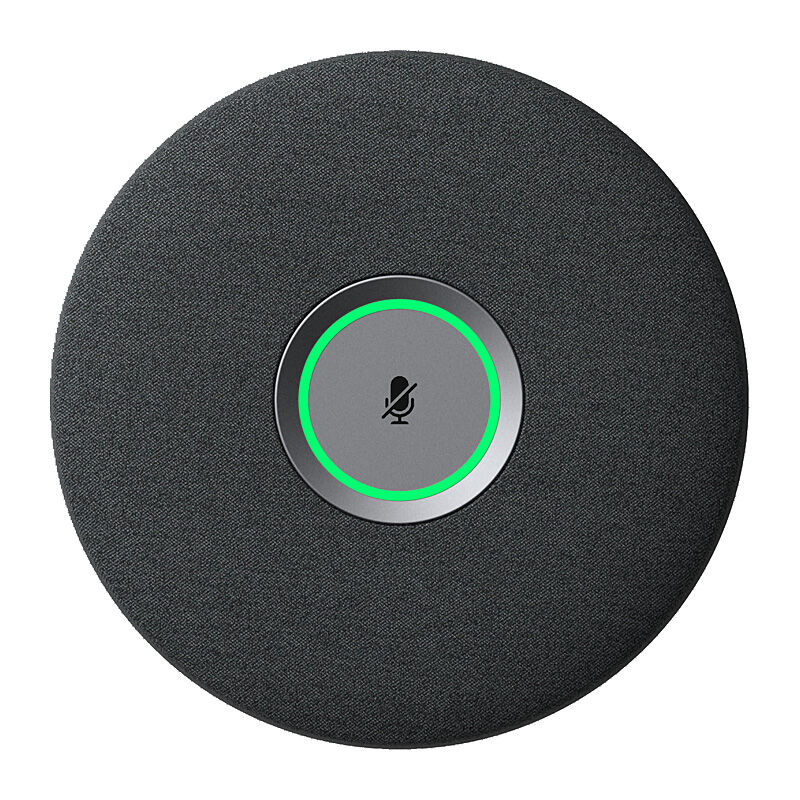

MAXHUB Mic Pod DM30

Features

• 360° omnidirectional pickup with support for multi-device cascadeexpansion.
• One-Touch Mute Toggle – A gentle touch instantly toggles the microphone on or off.
• Standard IP-Based Protocol – Enables independent, visual control andmanagement of each device via dedicated management software.
• Plug-and-play compatibility with the MAXHUB XBar series.
• Integrated AI audio algorithms, including AGC, AEC, and ambient noisereduction.
• Non-slip design with an optional desktop mounting bracket for enhancedstability and positioning.

Specifications

Microphone

• Quantity: 8
• Pickup Distance: 3 m (Optimal)
• Type: Silicon Microphone
• Frequency Range: 100 Hz - 20 kHz
• Microphone Unit Sensitivity: -37dBFS
• Maximum Number of Devices in a Cascade: 4 units

Accessories

• 7.5 m (24.6 ft) Network Cable: ×1
• Cable Grommet: ×1
• Screw Kit: ×1
• Mounting Bracket: ×1

Environmental Conditions

• Operation Temperature: 0°C - 40°C
• Operation Humidity: 10% - 90%RH
• Storage Temperature: -20°C - 60°C
• Storage Humidity: 10% - 90%RH
• Altitude: Below 5000 meters

I/O Ports

• Port: Dual RJ45 Ports
• Input (RJ45): 52V / 0.24A
• Output (RJ45): 52V / 0.18A
• Touch Button: Mute/Unmute the microphone
• Indicator Light: Green Light: In meeting - microphone active
  Red Light: In meeting - microphone muted
  White Light: Standby mode

Physical Specifications

• Dimension (D×H): φ112.5 × 30.3 mm
• Dimension (Package) (L×W×H): 1pcs: 208 × 187 × 114 mm
  10pcs: 595 × 395 × 250 mm
• Net Weight: 0.265 kg
• Gross Weight: 1pcs: 0.9 kg
  10pcs: 10.5 kg
