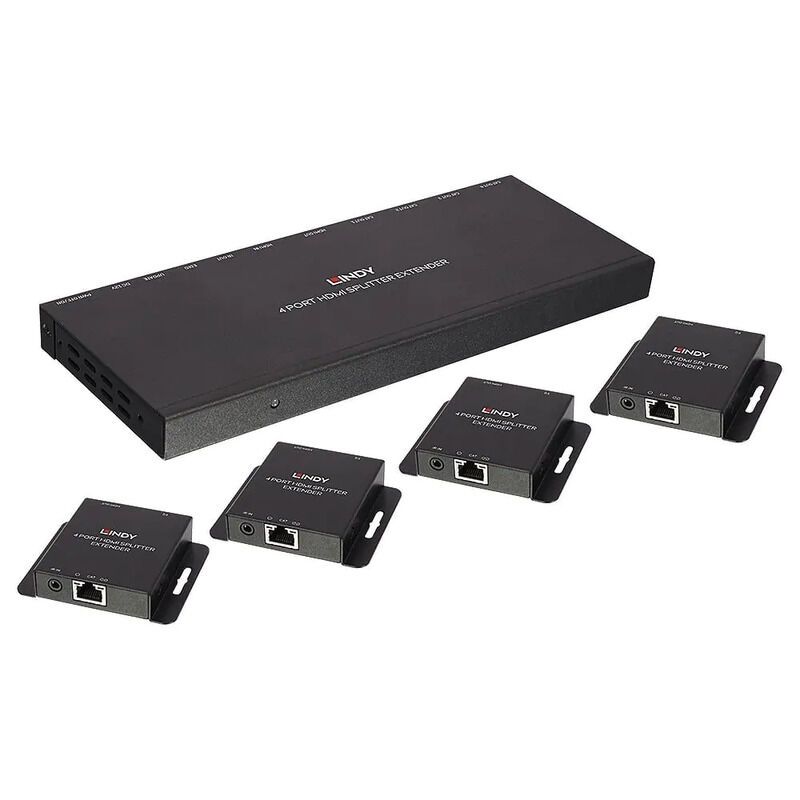

Lindy 70m CAT6 IR Split Extend

Features

• An advanced Splitter Extender that extends and distributes HDMI & IR signals to 4 displays at distances of up to 70m
• Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit, including FullHD
• Features a loop-through HDMI output on the transmitter for local monitoring/cascading
• Supports power over Cable (PoC), only a single power supply is required for operation
• 2 year warranty

Specifications

AV Interface

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supported Bandwidth: 10.2Gbps
• Maximum Distance: 70m (229.66ft): 1920x1080@60Hz; 40m (131.23ft): 3840x2160@30Hz 4:4:4 8bit
• Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
• HDCP Support: HDCP 1.4
• EDID Pass Through: Preset, Cloning Function
• Supported Audio: Up to 7.1 (Pass-through)
• IR Support: 20-60 kHz
• Transmission Medium: 1 x Cat.6 (per receiver)
• Special Features: PoC (Power over Cable)

Connectors

• Transmitter Input: HDMI (Female)
• Transmitter Output: 4 x RJ45 (Female), HDMI (Female), IR (Female)
• Receiver Input: RJ45 (Female), IR (Female)
• Receiver Output: HDMI (Female)
• Bidirectional Ports: N/A
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxHxD:
• Transmitter: 210x83x17mm (8.27x3.27x0.67in)
• Receivers: 79x68x17mm (3.11x2.68x0.67in) (per unit)
• Housing Material: Metal
• Net Weight:
• Transmitter: 0.443kg (0.98lb)
• Receiver: 0.131kg (0.29lb) per unit
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Power Requirements: 12VDC 2.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 310x162x74mm (12.21x6.38x2.91in)
• Gross Weight: 1.516kg (3.34lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH
