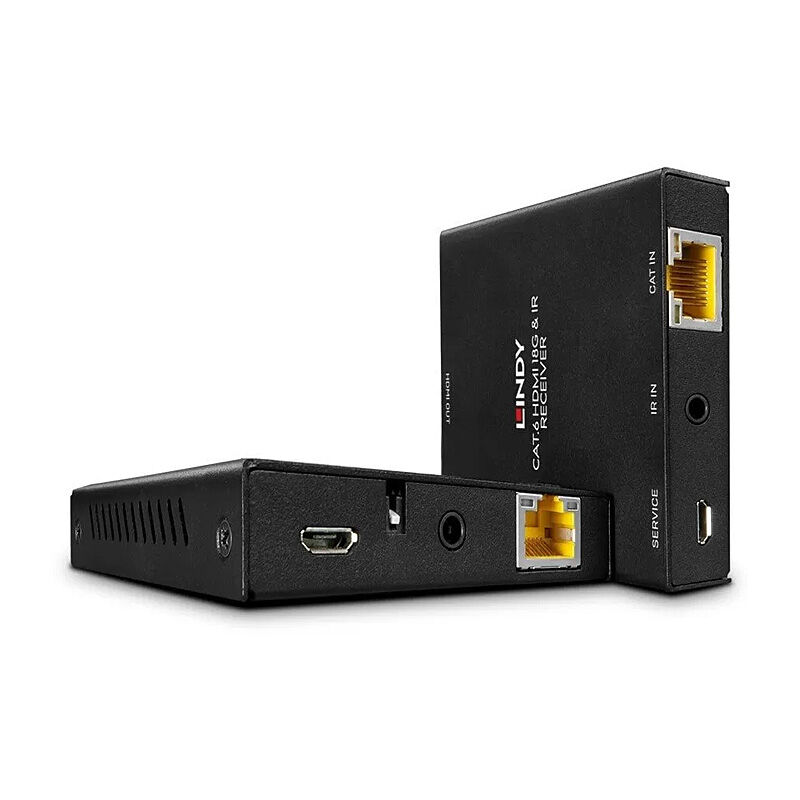

Lindy 50m CAT6 IR Extend

Features

• Extends 4K HDMI 18G signals over 50m distances with standard network cable
• Supports resolutions up to 3840x2160@60Hz 4:4:4 8bit, with support for HDR
• An HDMI loop-through output creates an additional viewing zone with a local display
• PoC (Power over Cat.6) functionality for power from a single power supply
• 2 year warranty

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 50m (164.04ft) – Cat.6/7, 30m (98.42ft) – Cat.5e
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: Pass-through
• EDID Pass Through: Pass-through
• Supported Audio: Up to 7.1 (Pass-through)
• IR Support: 20-60kHz
• Transmission Medium: 1 x Cat.5e/6 or higher
• Chipset: Transmitter: SIL9396 / Receiver: SIL9630
• Special Features:
  - PoC (Power over Cat.6)
  - IR Pass-through
  - Loop Out

Connectors

• Transmitter Input: HDMI Type A 19pin (Female), Micro-USB (Female), DC12V Power
• Transmitter Output: HDMI Type A 19pin (Female), RJ45 (Female), IR (Female)
• Receiver Input: RJ45 (Female), IR (Female), Micro-USB (Female)
• Receiver Ouput: HDMI Type A 19pin (Female)
• Power: 5.5/2.1mm barrel size

Physical Properties

• Dimensions (approx.) WxDxH:
  - Transmitter: 70x97x15mm (2.76x3.82x0.59in)
  - Receiver: 70x97x15mm (2.76x3.82x0.59in)
• Housing Material: Metal
• Net Weight:
  - Transmitter: 0.156kg (0.34lb)
  - Receiver: 0.151kg (0.33lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 – 90% RH (no condensation)
• Power Requirements: 12VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)
• Gross Weight: 0.605kg (1.33lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65
