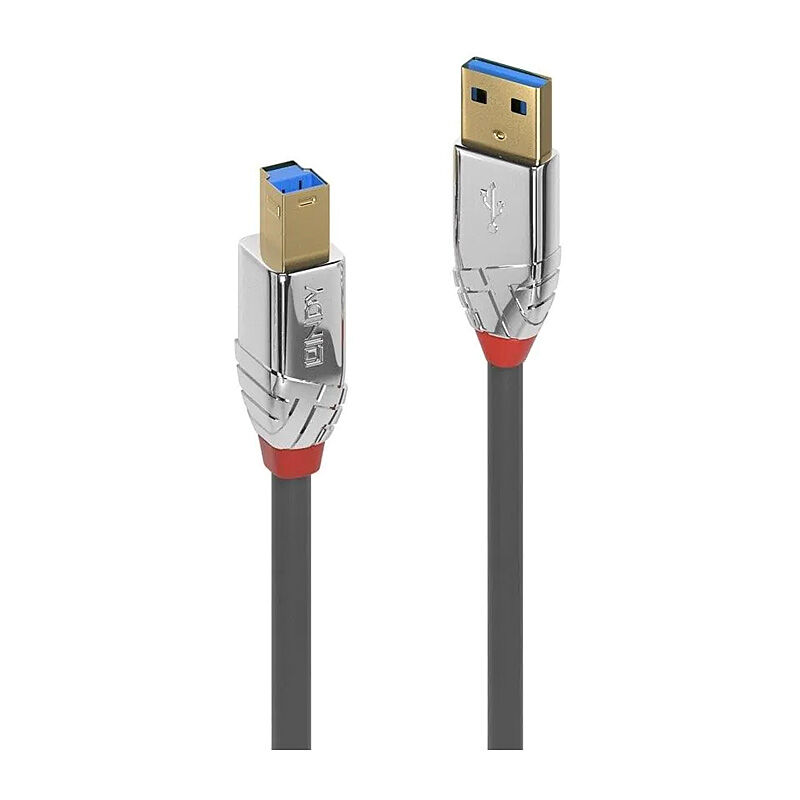

Lindy 5m USB 3.2 A to B 5Gbps

Features

• Superior performance and design USB 3.0 Type A to B cable
• Supports SuperSpeed data transfer speeds up to 5Gbps
• Chrome design ABS housing, 24K gold plated connectors and contacts
• Triple shielded cable, corrosion resistant, high performance tinned copper conductors
• SuperSpeed, USB 3.0, 5Gbps; 10 year warranty

Specifications

• Supported Bandwidth: 5Gbps
• Nominal Attenuation:
  0.5-3m: 0.5MHz-7.5GHz
  5m: 0.5MHz~7.5GHz
• Minimum Bend Radius: 55mm (2.2in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)
• ATC Approved: -

Connectors

• Connector A: USB 3.0 Type A Male
• Connector B: USB 3.0 Type B Male
• Housing Material: Chrome Plated, ABS
• Connector Plating: Gold 1µm
• Pin Construction: Phosphor Bronze
• Pin Plating: Gold 3µm
• Dimensions (approx.) WxDxH:
  A: 15.5x35x7.8mm (0.61x1.38x0.31in)
  B:12.2x35x13.5mm (0.48x1.38x0.53in)

Cable Construction

• Standard: USB 3.0
• Colour: Grey
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 24/28/28AWG
• Shielding: Copper Braid 65%

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL
