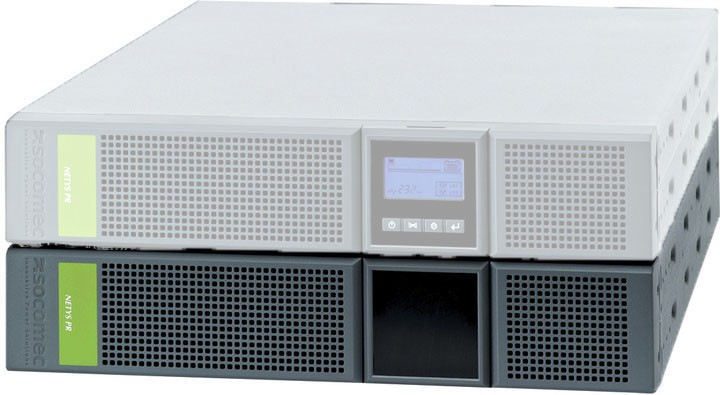

Socomec : NETYS PR RT 1700VA Tower / Rack UPS
The NETYS PR is a Line Interactive, true Sinewave Output 1700VA Universal tower / 2U rack UPS. It is a versatile, convertible high performance UPS solution for professional and IT equipment, servers and networking devices, CAD/ Graphic workstations with monitors and peripherals and control systems
Features
- A secure and professional supply continuity
- & Ideal solution for protecting small servers, networking devices and peripherals.
- Assures service continuity to critical applications.
- Designed for professional applications: the sinevawe inverter technology assures full compatibility with any kind of load and power supply.
- Tailored to IT networking : The space and time-saving tower/rack conversion option means it can be installed easily either in tower mode or inside standard 19" rack cabinets depending on the user 's needs.
- Simple to install : No configuration needed on first startup.
- & Compact footprint (2U/89 mm) for installation in rack cabinets.
- Attractive design for visible installation in offices.
- USB port and HID protocol as standard for direct interfacing with Windows systems, without the need for additional specialist software
- Protection for your data line: Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage
- Meets practical needs:& Optional battery extension modules (EBM) to meet all back-up time requirements, even after installation
- Clear and uncluttered LCD interface, with buzzers that immediately indicate the operating status of the UPS, even for less specialist users
- Simplified maintenance and Battery `hot swap ', without closing down other applications.
- Easy to use and to integrate: Wide range of communication protocols available in options (including JBUS, TCP/ IP and SNMP) for integration into LAN networks or building management systems (BMS) middot; Easy connections to the applications
- & Wide range of communication protocols available in options (including JBUS, TCP/ IP and SNMP) for integration into LAN networks or building management systems (BMS) middot; Easy connections to the applications (depending on power) via 8 or 8+1 IEC 320 (IT standard) sockets
- & Load segmentation function to prioritize loads and manage critical situations
- & EPO (Emergency Power Off) emergency stop
- & RS232 advanced connections for the management of the power supply and local/ remote shutdown of applications
Standard and Option Feature
- LOCAL VIEW: ideal UPS monitoring and shutdown point-to-point solution for Windows®, Linux and Mac OS X operating systems
- HID: UPS management based on Windows® embedded service - USB interface
- MODBUS/JBUS RTU (RS232)
Communication options
- NET VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems
- Dry-contact interface
Connections
1. Fan / air vents
2. EPO Emergency Power Off
3. USB serial port
4. RS232 serial port
5. Connector for external battery extension | 6. UPS output sockets
7. NTP protections (RJ45)
8. Slot for optional communication boards
9. Input socket
10. UPS full power output socket |
&
&
&
&
Control panel
| | 1. On / Off
2. Load present
3. Load level (5 steps)
4. General Alarm
5. Battery fault / Replace the battery
6. Overload
7. Battery capacity
8. Normal mode / Battery mode (flashing)
9. Automatic Voltage / Regulation active
10. Configuration
11. Programmab... |
