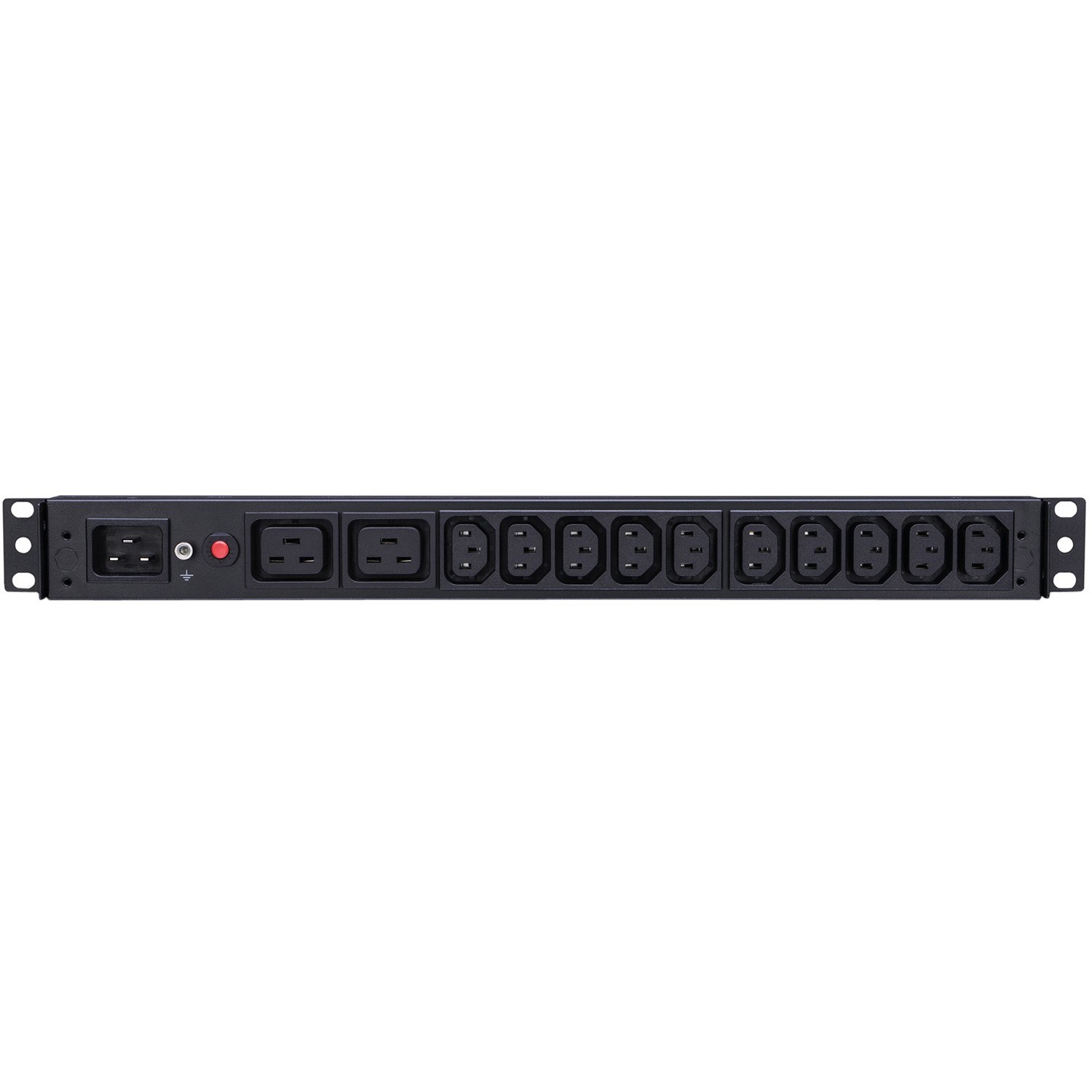

CyberPower-1U Basic PDU (PDU20BHVIEC12Ra) 16Amp input/output - 12x IEC-320 (2-C19 & 10-C13) out - IEC 320 C20 in - 2 Years Advanced Replacement WTY

GENERAL Type: Basic Phase: Single Phase INPUT Nominal Input voltage (Vac): 200 ~ 240 Input Frequency (Hz): 50/60 Maximum Input Current (A): 16 Input Connector Type: IEC C20x1 Power Cord Length (ft.): 10 Power Cord Length (m.): 3.05 OUTPUT Output Voltage (V): Depends on Input Overload Protection: Circuit Breaker Over Current Protection (Each Bank) (A): 16 Outlet(s) – Total: 12 Outlet(s) – Rear: 12 Outlet Type: IEC C19 x2/IEC C13 x10 PHYSICAL Installed Rack Height (U): 1 Form Factor: 1U Vertical Rackmount, 1U Horizontal Rackmount, Undercounter Installation Supported Enclosure Construction: Steel Color: Black Cord Retention Tray: Yes External Site Ground Pin: Yes Adjustable Mounting Brackets: 2 Set (L-short, L-long) PHYSICAL SIZE Dimensions (WxHxD) (in.): 17.5 x 1.75 x 1.5 Unit Dimensions (WxHxD) (cm): 445 x 44.5 x 38.1 Net Weight (Ibs.): 2 Net Weight (kg): 0.9

<p><b>Specifications:</b></p> <ul> <li>Nominal Input Voltage ( Vac ): 200 - 240</li> <li>Input Frequency ( Hz ): 50 / 60</li> <li>Maximum Input Current ( A ): 16</li> <li>Input Connector Type: IEC C20 x 1</li> <li>Power Cord Length: 3.05m</li> <li>Output Voltage ( V ): Depends on Input</li> <li>Overload Protection: Circuit Breaker</li> <li>Over Current Protection (Each Bank) ( A ): 16</li> <li>Outlet(s) - Total: 12</li> <li>Outlet Type: IEC C19 x 2 | IEC C13 x 10</li> <li>Installed Rack Height (U): 1</li> <li>Form Factor: 1U Vertical Rackmount, 1U Horizontal Rackmount, Undercounter Installation Supported</li> <li>Enclosure Construction: Steel</li> <li>Cord Retention Tray: Yes</li> <li>External Site Ground Pin: Yes</li> <li>Adjustable Mounting Brackets: 2 Set (L-short | L-long)</li> <li>Dimensions: 445 x 44.5 x 38.1mm</li> <li>Weight: 0.9kg</li> <li>Certifications: CE | UL60950</li> <li>RoHS: Yes</li> <li>Product Warranty: 2 Years</li> </ul> <p><b>Features:</b></p> <ul> <li>Overload Protection</li> <li>Adjustable Mounting Brackets</li> <li>Industrial-grade Metal Housing</li> <li>Cord Retention Tray</li> </ul>
