Cisco | IR1101-K9 | Catalyst IR1101 Rugged Series Router | Essentials

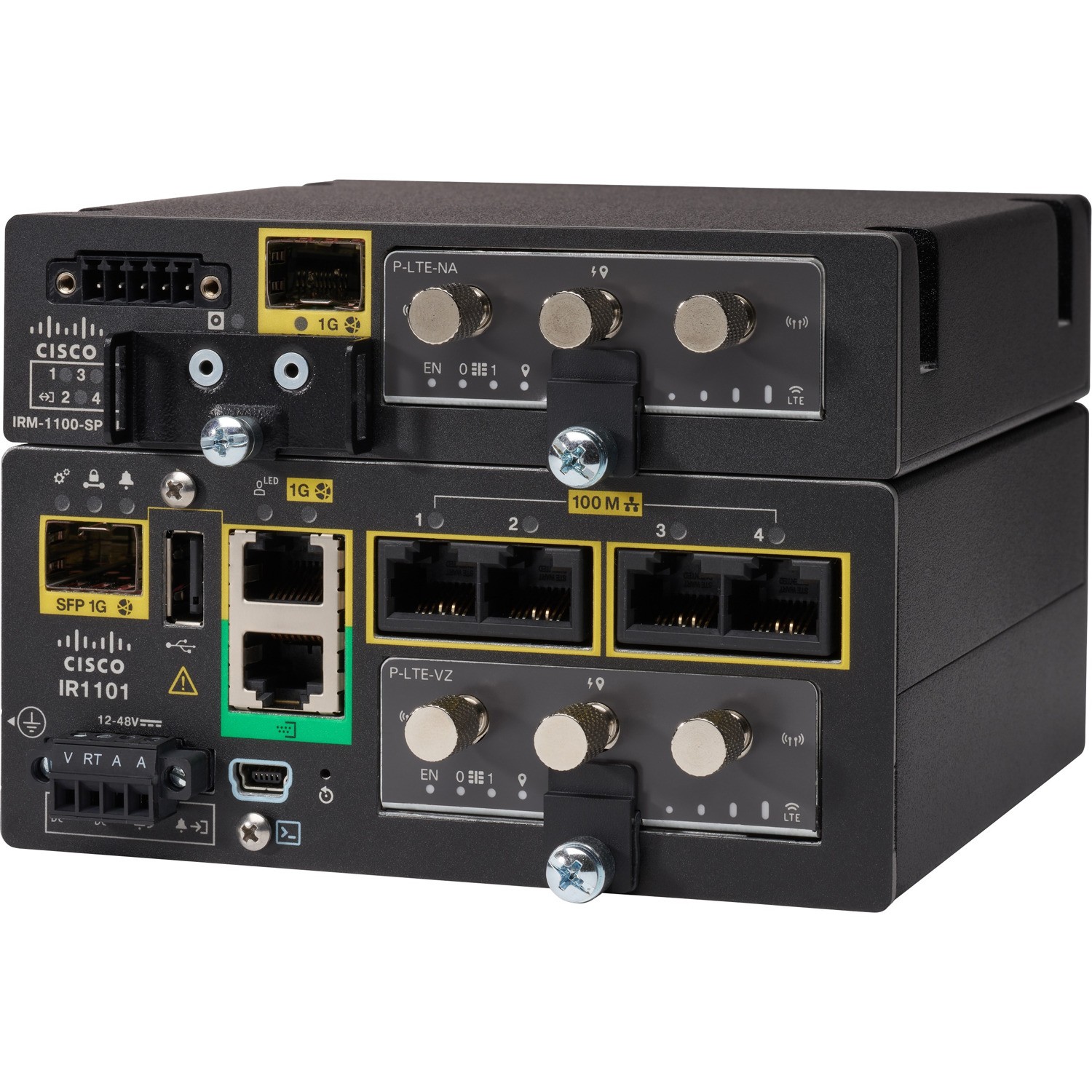

The Cisco IR1101 Integrated Services Router Rugged (IR1101-K9) is a compact and robust networking solution designed for demanding industrial environments and Internet of Things (IoT) deployments across various sectors like transportation, oil and gas, utilities, and industrial automation. Its modular design offers flexible connectivity options and allows for expansion to meet evolving needs. This router ensures reliable and secure communication, even in harsh conditions characterised by shock, vibration, dust, and humidity. It supports a wide operating temperature range, making it suitable for extreme environments.

FEATURES

• Compact and ruggedised design for harsh environments
• Modular architecture for flexible connectivity and expansion
• Gigabit Ethernet interfaces for high-speed wired connections
• Wide DC power input range (9.6V to 60V) for versatile power options
• Extended operating temperature range (-40°C to 60°C, up to 75°C with forced air)
• Dual expansion slots for adding modules like LTE, GPS, or Wi-Fi
• Advanced security features including VPN and firewall support
• Support for Cisco Software-Defined WAN (SD-WAN)

SPECIFICATIONS

• LAN Ports: 4 x 10/100 Fast Ethernet
• WAN Ports: 1 x 10/100/1000 Gigabit Ethernet (RJ45), 1 x Gigabit Ethernet SFP
• Serial Ports: 1 x RJ45 RS232
• USB Ports: 1 x USB 2.0 Type A, 1 x Mini-USB Type B (console)
• Memory: 4GB DRAM
• Flash Memory: 4GB (usable), 8GB (physical)
• Expansion Slots: 2 (1 for pluggable module, 1 for mSATA SSD or other expansion)
• Power Input: 9.6V to 60V DC
• Operating Temperature: -40°C to 60°C (standard), -40°C to 75°C (with forced air)
• Humidity: 10% to 95% relative humidity (non-condensing)
• Dimensions: 60mm x 132.5mm x 124.9mm (H x W x D)
• Weight: 1.02kg (chassis)
• Ingress Protection: IP30 compliant (when vertical and ports downward)

WARRANTY

5-Year Limited Warranty
