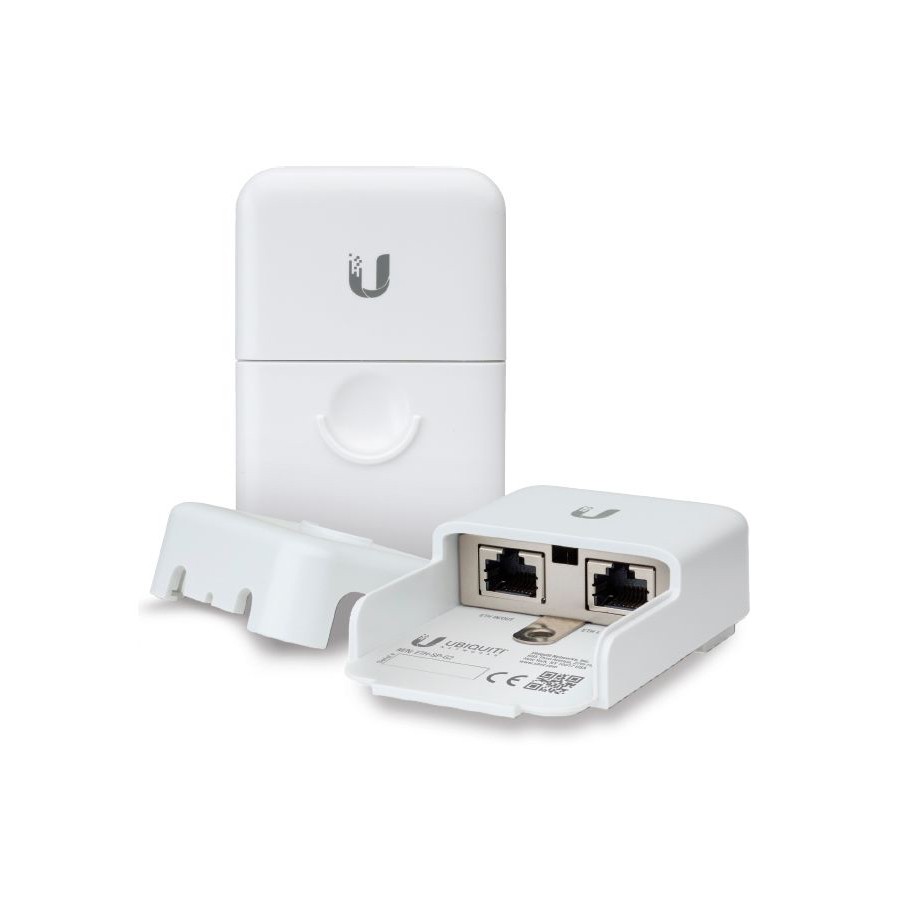

Ubiquiti Ethernet Surge Protector ETH-SP-G2

The Ubiquiti ESD protection for the outdoor high-speed network. The ETH-SP-G2 is a cost-effective solution for protecting outdoor ethernet devices from damaging electrostatic discharge and surges. Damaging ESD attacks and surges will be absorbed by the device and safely discharged to the ground.

The ETH-SP-G2 is designed to protect PoE and non-PoE devices with connection speeds of up to 1Gbps. Featuring 2 passive, surge protected RJ45 connections for maximum compatibility.

Features:

• 2 passive RJ45 surge protected connector
• Data line protection RJ45 10/100/1000 Ethernet
• Absorbing transient current with response to surge Voltage from 100V/s to 1kV/μs

Specifications:

• Dimensions: 91mm x 61mm x 32.5mm
• DC spark-over Voltage 90V @ 100V/s
• Maximum impulse spark-over Voltage 700V @ 1kV/μs
• Discharge current: 10kA+
• Maximum insulation resistance: 1G? @ 50V
• Maximum capacitance: 1.0pF @1 MHz
• IEEE 802.3af PoE supported
• ETSI300-019-1.4 Shock and vibration certification
• Operating temperature: -30C to 65C
• Operating humidity 10% - 90% Noncondensing
