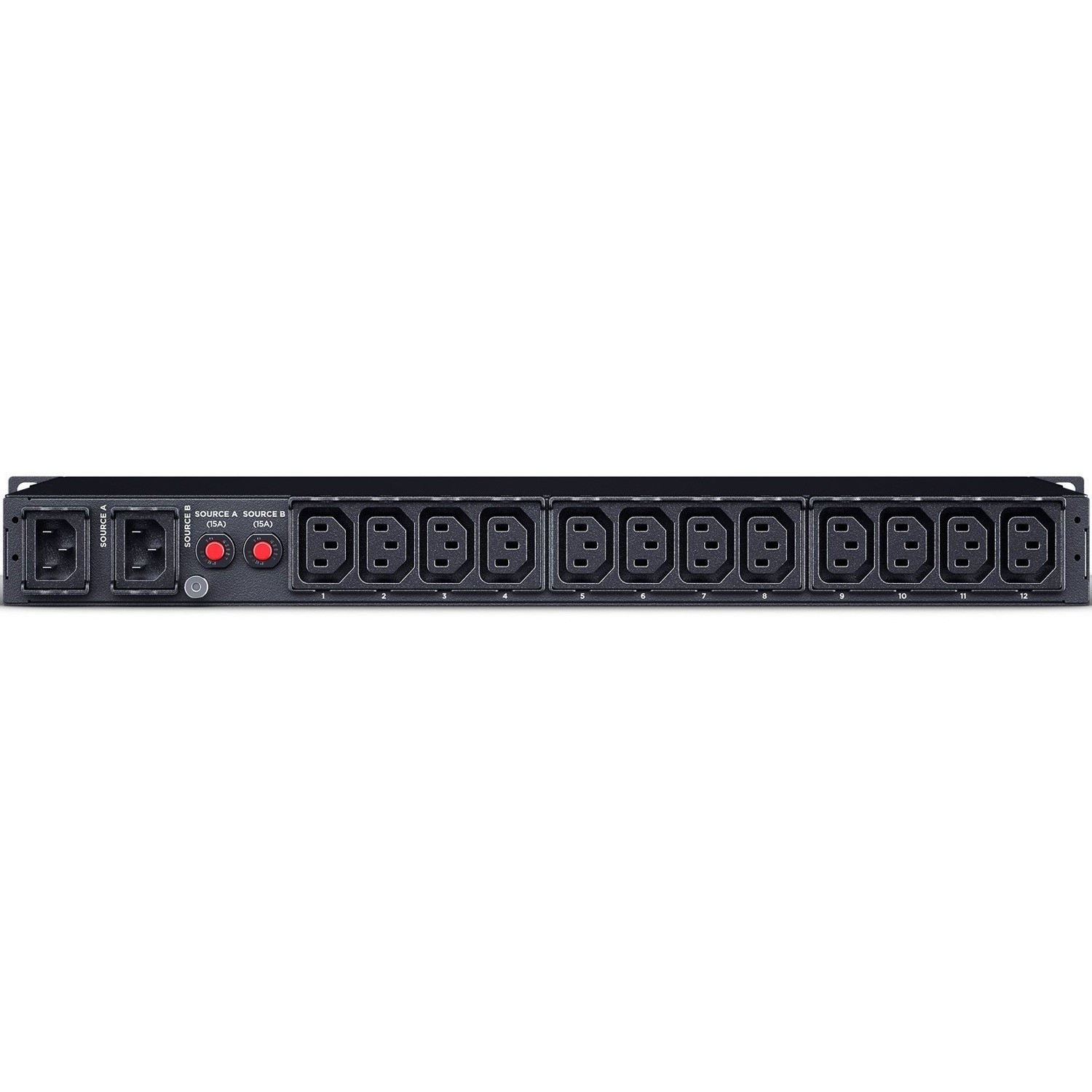

CyberPower 1U 10amp Metered Automatic Transfer Switch-(PDU24004) – 12x IEC C13 out – IEC 320 C14*2 in - 2 Yrs Adv. Replacement Wty-(No SNMP network function
MPN: PDU24004
$817.00$939.00
Inc GST
Available to order
0 available
Description
CyberPower 1U 10amp Metered Automatic Transfer Switch-(PDU24004) – 12x IEC C13 out – IEC 320 C14*2 in - 2 Years Advanced Replacement Warranty - (No SNMP network function)
Specification
<h2>Specifications:</h2>
<ul>
<li>Phase: Single Phase</li>
<li>Dual Power Inputs: Yes</li>
<li>Nominal Input Voltage ( Vac ): 200 - 240</li>
<li>Input Frequency ( Hz ): 50 / 60</li>
<li>Maximum Input Current ( A ): 12 (UL) | 10 (CE)</li>
<li>Overload Protection: Circuit Breaker</li>
<li>Input Connector Type: IEC C14 x 2</li>
<li>Power Cord Length: 3.05m</li>
<li>Output Voltage ( V ): Depends on Input</li>
<li>Outlets - # of Bank(s): 1</li>
<li>Outlet(s) - Total: 12</li>
<li>Outlet(s) - Rear: 12</li>
<li>Outlet Type: IEC C13 x 12</li>
<li>LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Serial Number | Hardware Version | Firmware Version</li>
<li>Hot-swappable LCD Module: Yes</li>
<li>LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | LCD Settings | Reset / Reboot</li>
<li>LED Indicators: PDU Status | Source Status | Load</li>
<li>Connectivity Port: RJ45 (for Serial)</li>
<li>User-upgradeable Firmware: Yes</li>
<li>Installed Rack Height (U): 1</li>
<li>Form Factor: 1U Horizontal Rackmount</li>
<li>Enclosure Construction: Steel</li>
<li>Cord Retention Tray: Yes</li>
<li>IEC Receptacle Locking: Yes</li>
<li>External Site Ground Pin: Yes</li>
<li>Adjustable Mounting Brackets: 1 Set</li>
<li>Dimensions: 433 x 44 x 215mm</li>
<li>Weight: 3.5kg</li>
<li>Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS</li>
</ul>
<h2>Features:</h2>
<ul>
<li>Real-time Local Monitoring</li>
<li>Quick Transfer Time (Total < 10 ms)</li>
<li>Digital Real-time Load Display</li>
<li>Hot-swappable LCD Design</li>
<li>Firmware Upgrade via USB</li>
<li>Adjustable Mounting Brackets</li>
<li>IEC Receptacle Locking</li>
<li>Dual Inputs</li>
<li>Industrial-grade Metal Housing</li>
<li>User Configurable Color LCD</li>
<li>LED Status Indicator</li>
<li>User-upgradeable Firmware</li>
<li>Cord Retention Tray</li>
</ul>
<h2>What's in the box?</h2>
<ul>
<li>1 x PDU24004</li>
<li>1 x User Manual</li>
<li>1 x Cord Retention Tray</li>
<li>1 x Mounting Brackets</li>
<li>1 x Cable Ties</li>
<li>1 x Screw Kit</li>
<li>1 x Power Cord</li>
<li>1 x Serial Cable</li>
</ul>
