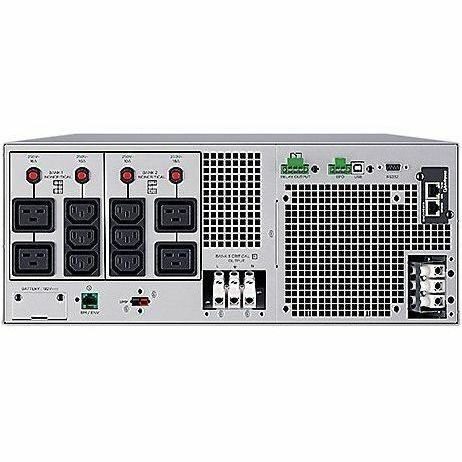

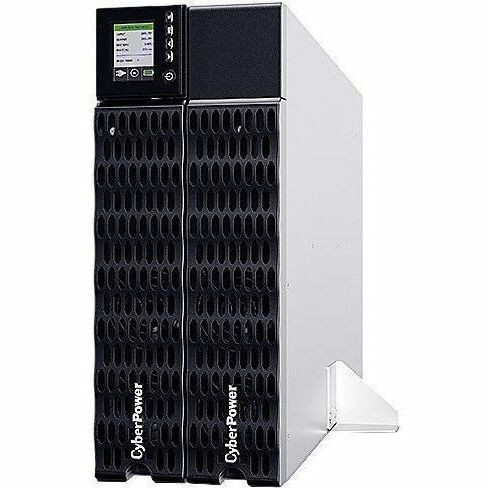

CP OL10000VA Rack Tower UPS

CP OL10000VA Rack Tower UPS

<h2>Specifications:</h2> <ul> <li>Phase: Single Phase</li> <li>Form Factor: Rackmount / Tower</li> <li>UPS Topology: Online Double Conversion</li> <li>Energy Saving Technology: Online ECO Mode Efficiency > 98%</li> <li>Active PFC Compatibility: Yes</li> <li>Generator Compatibility: Yes</li> <li>Input Voltage Range: 200 - 240v</li> <li>Input Frequency: 50 ± 10 | 60 ± 10</li> <li>Input Frequency Detection: Auto-sensing</li> <li>Rated Input Current: 54a</li> <li>Input Connector Type: Hardwire Terminal Block</li> <li>Output Capacity (VA): 10000</li> <li>Output Capacity (Watts): 10000</li> <li>On Battery Waveform: Pure Sine Wave</li> <li>Overload Protection: Internal Current Limiting / Circuit Breaker</li> <li>Overload Protection (Line Mode): 105-125% Load for 1 min / 125-150% Load for 10 sec</li> <li>Overload Protection (Battery Mode): 105-130% Load for 10 sec / 130-150% Load for 2 sec</li> <li>Overload Protection (Bypass Mode): Circuit Breaker</li> <li>Crest Factor: 3 : 1</li> <li>No. of Outlets: 11</li> <li>Battery Runtime at Half Load: 8.3 Mins</li> <li>Battery Runtime at Full Load: 2.4 Mins</li> <li>Typical Recharge Time: 4 Hours</li> <li>Start On Battery: Yes</li> <li>Smart Battery Management (SBM): Yes</li> <li>Built-in Battery Management Module: Yes</li> <li>User-replaceable: Yes - Qualified Personnel Only</li> <li>Hot-swappable: Yes</li> <li>Battery Type: Sealed Lead-acid</li> <li>Replacement Battery Pack (RBP): RBP0159</li> <li>Battery Voltage: 192v</li> <li>Compatible Extended Battery Module (EBM): BPE192VL2U01 (Built-in Charger)</li> <li>Surge Suppression: 2430 Joules</li> <li>Serial Port: Combo (RS232 + Dry Contact)</li> <li>SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included</li> <li>Dimensions: 433 x 173 x 720mm</li> <li>Weight: 71.2kg</li> <li>Certifications: CE / EAC / RCM</li> <li>RoHS: Yes</li> </ul> <h2>Features:</h2> <ul> <li>Online (Double Conversion) UPS Topology</li> <li>High Density Design</li> <li>High Output Power Factor</li> <li>Tiltable LCD Panel</li> <li>Surge and Spike Protection</li> <li>Controllable Outlet Groups</li> <li>Battery Management Technology</li> <li>Extended Battery Module (EBM)</li> <li>Emergency Power Off (EPO) Port</li> <li>PowerPanel Management Software</li> <li>ECO Mode</li> <li>Color LCD Panel</li> <li>Quick Charging Technology</li> <li>Automatically rotatable LCD</li> <li>Critical/Non-critical Load Outlets</li> <li>Generator Compatible</li> <li>Hot-swappable Batteries</li> <li>Smart Battery Management</li> <li>SNMP/HTTP Remote Management Capability</li> </ul>
