Full specification
Power Rating: 6000VA / 5400W
Form Factor: 3U Rack/Tower
Battery Type: Lithium-ion (LFP) with 8–10 year service life
Input Voltage: 100–276V (176–276V without derating)
Output Voltage: 230V (adjustable to 200/208/220/240V)
Input Frequency: 40–70Hz
Output Frequency: 50/60Hz (auto-select or frequency converter mode)

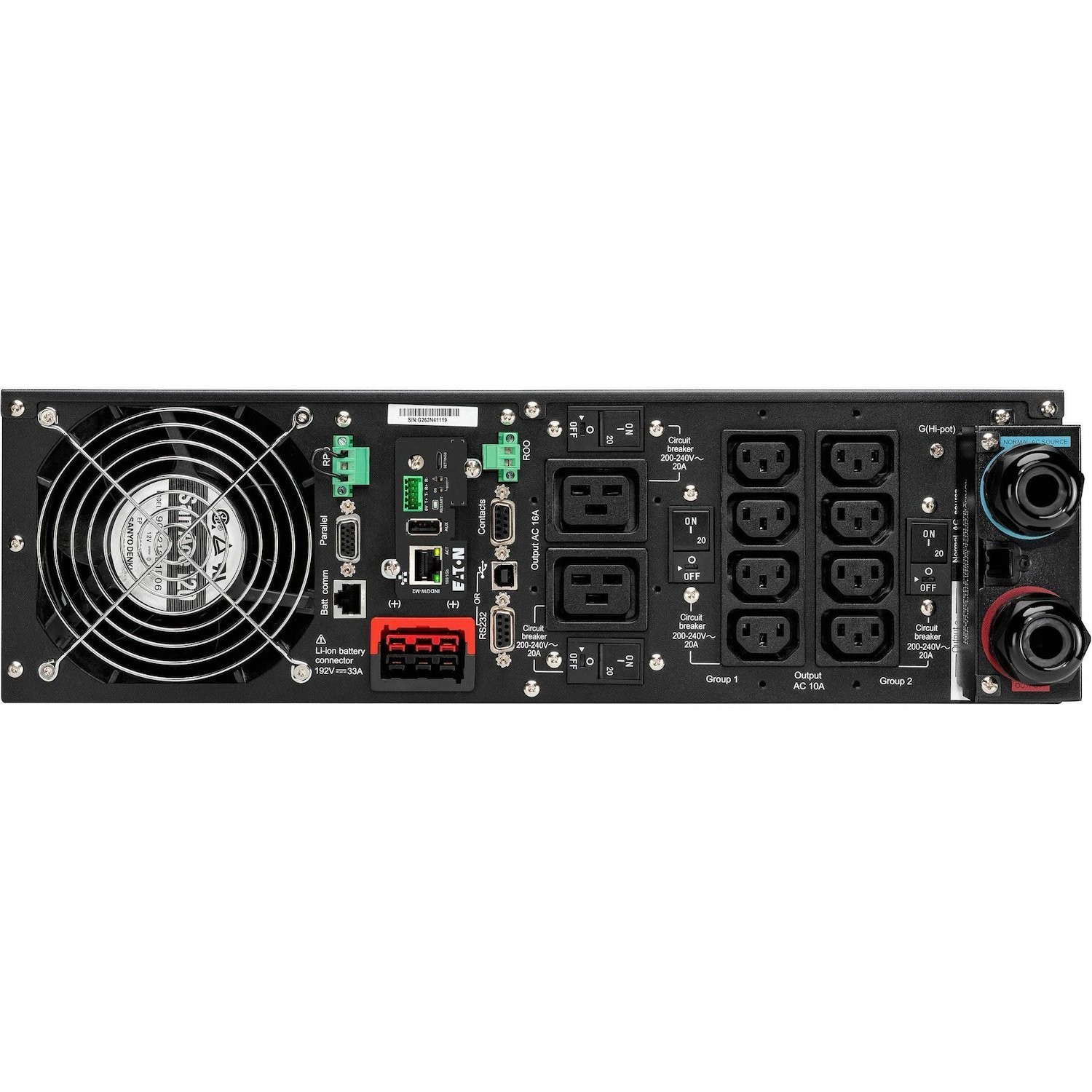

Output Connections: 8 × IEC C13 (10A) + 2 × IEC C19 (16A) + Terminal block hardwired
Administration: USB port, RS232 serial port, remote ON/OFF, remote power-off, relay output, optional Gigabit network card slot
Dimensions (H × W × D): 130mm × 440mm × 685mm
Weight: 35.8 kg (UPS only)
Included: Gigabit network card, rack rail kit
Technology: Online double-conversion with automatic bypass and PFC
Display: 4 LEDs + multilingual LCD
Noise Level: 45 dBA @ 1 meter typical
IP Rating: IP20
Warranty: 5 years
