LGView other LG products →

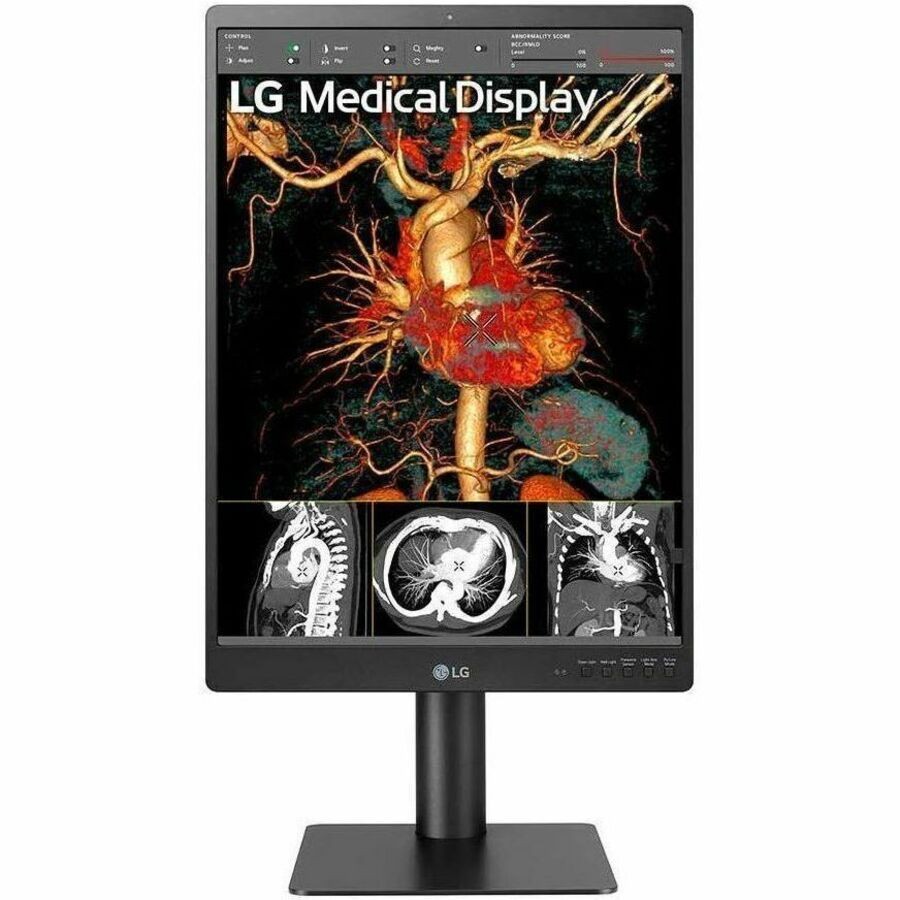

LG 21" 3MP IPS DIAGNOSTIC , 1100NITS, DP, USB, DVI, PIVOT, H/ADJ, 5YR
MPN: 21HQ513D-S
$4,713.00$9,999.00
Inc GST
Available to order
0 available
Description
LG 21'' 3MP IPS Diagnostic Monitor, 1100Nits, 5 Year Warranty
Specification
<h3>Features</h3>
<ul>
<li>21.3-inch 3MP IPS Display</li>
<li>1200cd/m² Brightness (Typ.)</li>
<li>Pathology Mode, Focus View Mode</li>
<li>Down light & Wall light</li>
<li>Ergonomic Design</li>
</ul>
<h3>Specifications</h3>
<h4>Display</h4>
<ul>
<li>Size [Inch]: 21.3</li>
<li>Aspect Ratio: 3:4</li>
<li>Response Time: 5ms (GtG at Faster)</li>
<li>Resolution: 1536 × 2048</li>
<li>Pixel Pitch [mm]: 0.2115 × 0.2115</li>
<li>Viewing Angle (CR≥10): 178° (Right/Left), 178° (Up/Down)</li>
<li>Brightness (Typ.) [cd/m²]: 1100</li>
<li>Contrast Ratio (Typ.): 1800:1</li>
<li>Colour Gamut (Typ.): NTSC 72%</li>
<li>Colour Bit: 10bit</li>
<li>Surface Treatment: Anti-glare, 3H</li>
</ul>
<h4>Connectivity</h4>
<ul>
<li>DisplayPort: YES (In 2ea / Out 1ea)</li>
<li>USB Downstream Port: YES (2ea / ver3.0)</li>
<li>USB Upstream Port: YES (2ea / ver3.0)</li>
<li>Daisy Chain: YES (3MP / 60Hz)</li>
</ul>
<h4>Features</h4>
<ul>
<li>Smart Energy Saving: YES</li>
<li>Flicker Safe: YES</li>
<li>Black Stabiliser: YES</li>
<li>Reader Mode: YES (Text mode)</li>
<li>Super Resolution+: YES</li>
<li>Auto Brightness: YES</li>
<li>Brightness Stabilisation: YES</li>
<li>Colour Temperature: 6500K / 7500K / 9300K / Manual (5000K ~ 10000K)</li>
<li>DICOM Compliant: YES</li>
<li>Focus View: YES</li>
<li>Front Sensor: YES</li>
<li>Hot Key: YES (5keys)</li>
<li>HW Calibration: YES (PerfectLum)</li>
<li>Lighting: YES (Down / Wall)</li>
<li>Light Box Mode: YES</li>
<li>Pathology Mode: YES</li>
<li>Presence Sensor: YES</li>
</ul>
<h4>Mechanical</h4>
<ul>
<li>Display Position Adjustments: Tilt / Height / Pivot</li>
<li>Wall Mountable [mm]: 100 × 100</li>
<li>Borderless Design: Normal</li>
<li>Mechanical Power Switch: YES</li>
<li>OneClick Stand: YES</li>
</ul>
<h4>Dimensions / Weights</h4>
<ul>
<li>Dimension in Shipping (W × H × D): 567 × 187 × 652 mm</li>
<li>Dimension with Stand (W × H × D): 343.1 × 640 × 234.6 mm</li>
<li>Dimension without Stand (W × H × D): 343.1 × 484 × 72.4 mm</li>
<li>Weight in Shipping: 10.5 kg</li>
<li>Weight with Stand: 7 kg</li>
<li>Weight without Stand: 5 kg</li>
</ul>
<h4>Power</h4>
<ul>
<li>Power Consumption (DC Off): Less than 0.3W</li>
<li>AC Input: 100-240Vac, 50/60Hz</li>
<li>Type: External Power (Adapter)</li>
<li>DC Output: 19V, 6.32A</li>
</ul>
<h4>Accessory</h4>
<ul>
<li>Display Port: YES</li>
<li>Adapter: YES</li>
<li>Calibration Report (Paper): YES</li>
<li>DVI-D: YES</li>
<li>Power Cord: YES</li>
<li>USB A to B: YES</li>
</ul>
<h4>Standard</h4>
<ul>
<li>RoHS: YES</li>
<li>CE: MDR</li>
<li>EN (EN 60601-1 / EN 60601-1-2): YES</li>
<li>EN (EN 60950-1 / EN 55032, 55024): YES</li>
<li>FDA: 510(k) (Class II)</li>
<li>GMP: YES</li>
<li>IEC (IEC 60601-1 / IEC 60601-1-2): YES</li>
<li>IEC (IEC 60950-1 / IEC 55032, 55024): YES</li>
<li>ISO13485: YES</li>
<li>MFDS: YES</li>
<li>REACH: YES</li>
<li>UL (cUL): YES</li>
<li>WEEE: YES</li>
</ul>
