Description
LENOVO ThinkCentre M70S G6 SFF Intel U7-265 16GB DDR5 512GB SSD Windows 11 Pro 3YR OS Intel UHD GPU Keyboard Mouse
PERFORMANCE
Processor Intel® Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB UDIMM DDR5-5600
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 128GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to four drives, 1x 3.5' HDD + 1x 2.5' HDD + 2x M.2 SSD • 3.5' HDD up to 2TB • 2.5' HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
RAID Preset None
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
Two PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 299.7 x 339.5 mm (3.6 x 11.8 x 13.4 inches)
Weight 5.1 kg (11.2 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M

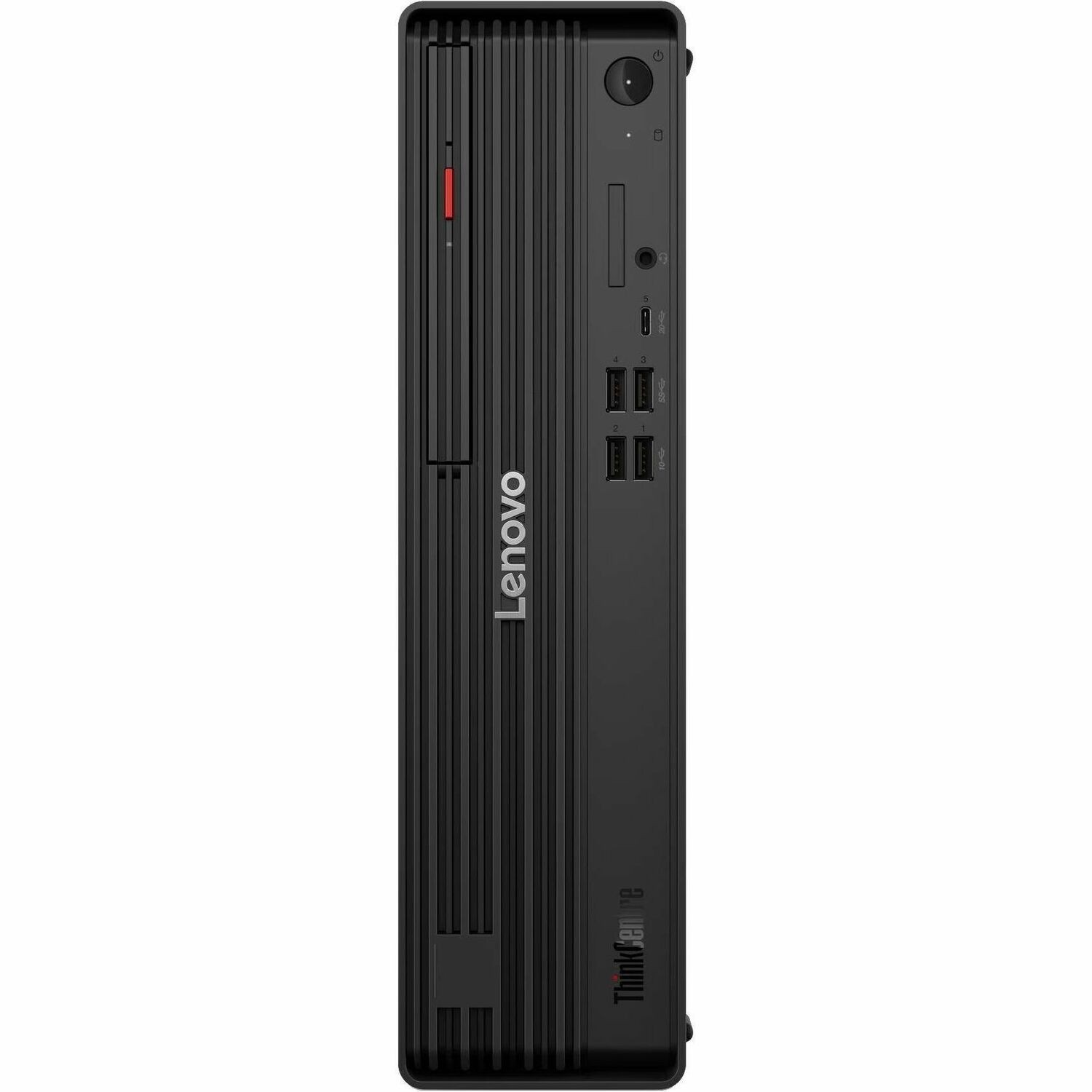

Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)

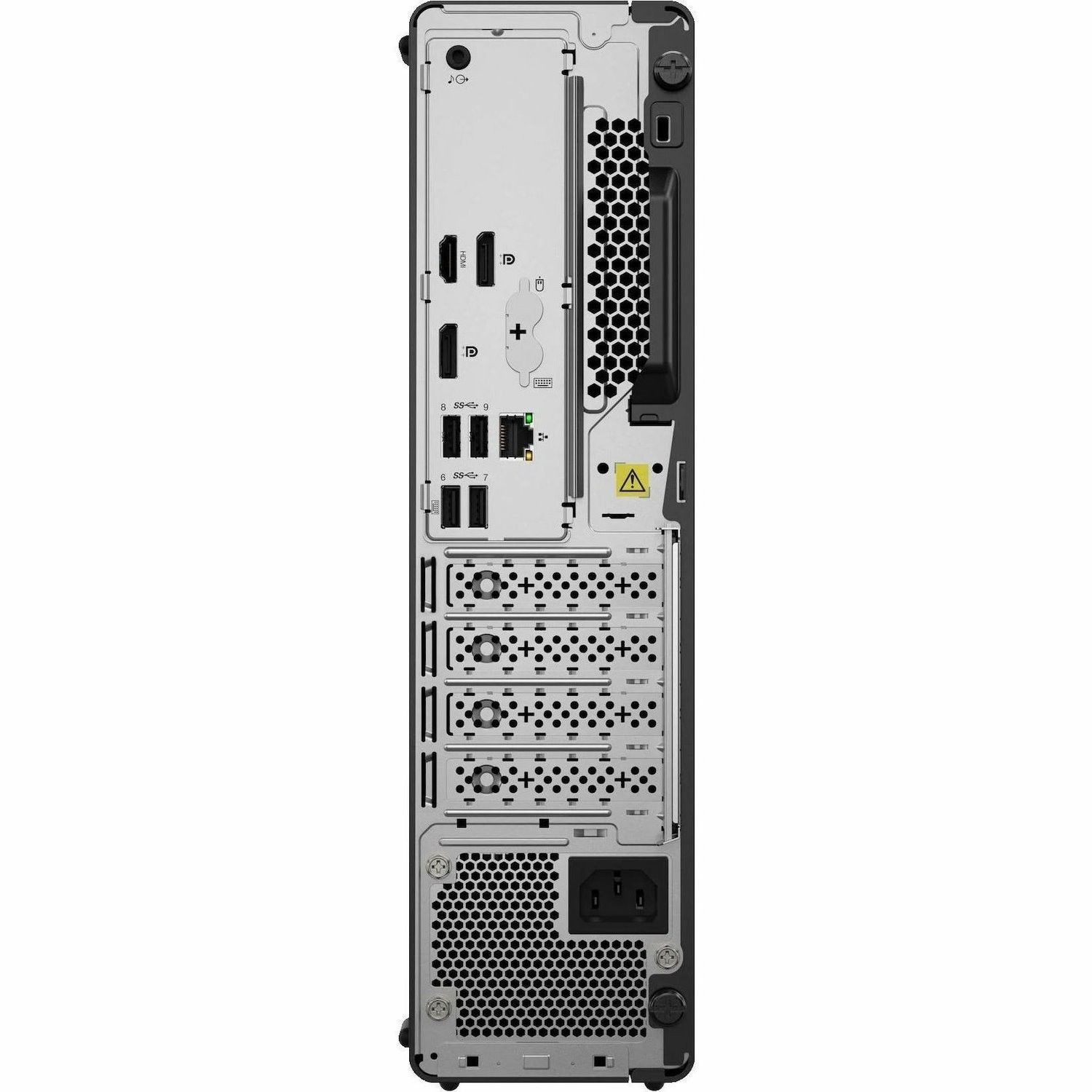

Rear Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® 2.1 TMDS
2x DisplayPort™ 1.4a (HBR3, DSC)
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
TCO Certified 10
ErP Lot 3
GREENGUARD®
RoHS compliant
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English
