Description

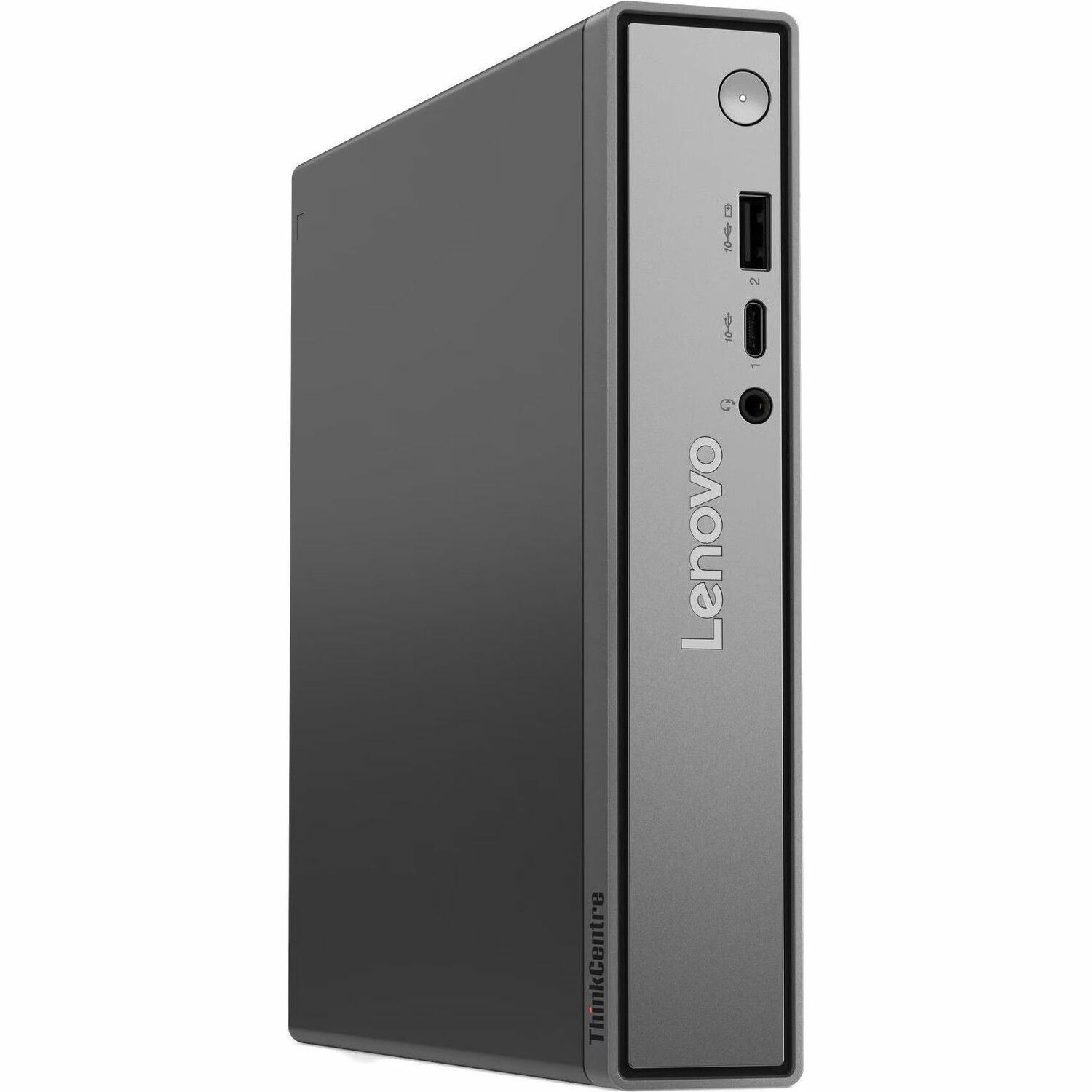

LENOVO ThinkCentre Neo 50Q G5 Tiny Intel i5-13420H 16GB DDR5 256GB SSD Windows 11 Pro 1YR OS Intel UHD GPU Keyboard Mouse
PERFORMANCE
Processor Intel® Core i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache
Graphics Integrated Intel® UHD Graphics
Chipset Intel® SoC Platform
Memory 2x 8GB SODIMM DDR5-5600
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each
RAID Preset None
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC256 codec
Speakers 2Wx1
Camera No camera
Microphone No microphone
Power Supply 90W 89% Adapter
DESIGN
Keyboard USB, Calliope, Black, English (US)
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Adapter Cage None
Toolless Chassis Screw None
Mounting None
IO Box No IO box
Pen Pen Not Supported
Form Factor Tiny (1L)
Dimensions (WxDxH) Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches)
Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight Around 1.13 kg (2.49 lbs)
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4b
1x Ethernet (GbE RJ-45)
1x Power connector
Optional Rear Ports (configured) DP 1.4
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Onsite
