Description

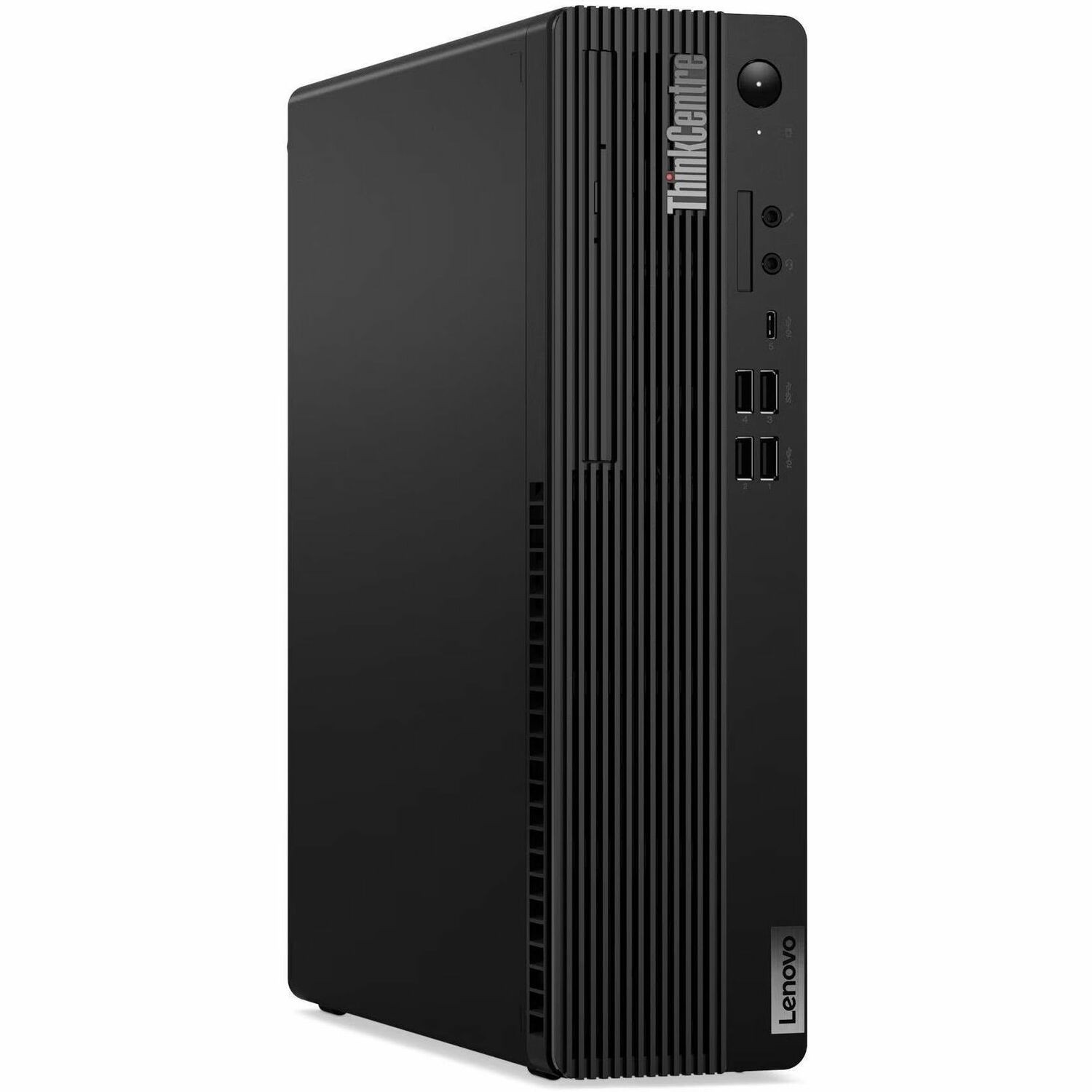

LENOVO ThinkCentre M90S G4 SFF Intel i5-13500 16GB DDR5 512GB SSD Windows 11 Pro 1YR OS Intel UHD GPU vPro Keyboard Mouse
Input Devices Physical Characteristics 0
Keyboard Localization English (US) Weight (Approximate) 5.30 kg
Warranty Form Factor Small Form Factor
Additional Warranty Information 1 Year On-site Height 339.5 mm
Chipset Width 92.5 mm
Chipset Manufacturer Intel Depth 297.7 mm
Chipset Model Q670 Product Color Black
Memory Color Family Black
Maximum Memory Supported 128 GB Miscellaneous
Standard Memory 16 GB Package Contents ThinkCentre M90s Gen 4
Memory Technology DDR5 SDRAM Keyboard
Network & Communication Mouse
Ethernet Technology Gigabit Ethernet
LAN Manufacturer Intel Features Security Slot
LAN Model I219-LM Toolless Cover
Display & Graphics Environmentally Friendly Yes
Graphics Controller Manufacturer Intel Environmental Certification TCO Certified 9.0
Graphics Controller Model UHD Graphics 770 TCO Certified Yes
Graphics Memory Technology DDR5 SDRAM Energy Efficiency Compliance Energy-related Products Directive Lot 3 (ErP Lot 3)
Graphics Memory Accessibility Shared Environmental Compliance Restriction of Hazardous Substances (RoHS)
Operating System General Information
Operating System Windows 11 Pro Product Type Desktop Computer
Operating System Architecture 64-bit Manufacturer Part Number 12HRS10J00
Operating System Platform Windows Manufacturer Website Address http://www3.lenovo.com/au/en
Operating System Language English Manufacturer Lenovo Group Limited
Power Description Product Model 12HRS10J00
Input Voltage 120 V AC Product Name ThinkCentre M90s Gen 4
230 V AC Product Line ThinkCentre
Frequency 50 Hz Product Series M90s Gen 4
60 Hz Brand Name Lenovo
Maximum Power Supply Wattage 260 W Interfaces/Ports
Storage Total Number of USB Ports 9
Drive Type SSD Number Of Ethernet Ports 1
Solid State Drive Interface PCI Express NVMe 4.0 x4 USB Type-C Detail 1x USB-C® 3.2 Gen 2 (support data transfer and 15W charging)
Solid State Drive Configuration 1 x 512GB HDMI (Rear) Yes
Total Solid State Drive Capacity 512 GB USB Type-C (Front) Yes
SSD Form Factor M.2 Number of DisplayPort Outputs (Rear) 2
DisplayPort (Rear) Yes
Number of USB 3.2 Gen 1 Ports 6
Number of USB 3.2 Gen 2 Ports 2
Optional Ports Details regarding optional ports aggregated from the information available for this product's family/series. | Optional Rear Ports
1x USB-C® 3.2 Gen 1 with DisplayPort™ function and 5V@3A charging (Flex IO)
1x HDMI® 2.1 TMDS (Flex IO)
1x DP 1.2 (Flex IO)
1x VGA (Flex IO)
1x USB-C® 3.2 Gen 2x2 (support data transfer, via USB-C® expansion card, PCIe® x4)
2x USB-C® 3.2 Gen 2 (support data transfer, via 2-port USB-C® expansion card, PCIe® x4)
2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe® x1)
2x USB 2.0 (via 2-port adapter)
1x parallel
1x serial
1x 2nd serial
Optional Front Ports
1x card reader
Processor
Processor Speed 2.50 GHz
Processor Type Core i5
L2 Cache 11.50 MB
Processor Model i5-13500
Processor Core Tetradeca-core (14 Core)
Processor Manufacturer Intel
vPro Technology Yes
Maximum Turbo Speed 4.80 GHz
Processor Generation 13th Gen
Processor Threads 20
