Ubiquiti Building Bridge, 60 GHz Wireless Point-ToPpointBbridge With 5 GHz Backup Radio.
MPN: UBB-Single
$546.50
Inc GST
Available to order
0 available
Description
Ubiquiti Building Bridge
SKU: UBB-Single
Tech Specs: <a href=' https://techspecs.ui.com/unifi/wifi/ubb '>Click Here</a>
Installation Guide: <a href=' https://dl.ui.com/qig/ubb/#index '>Click Here</a>
Description:
60 GHz wireless point-to-point bridge with a 5 GHz backup radio.
Features:
• 500 m (1,640 ft) maximum range
• 60 GHz & 5 GHz dual-radio redundancy
• Includes PoE power adapters
• Built-in LED alignment indicators
<div style='text-align: justify;'>
<img src=' https://images.svc.ui.com/?u=https%3A%2F%2Fcdn.ecomm.ui.com%2Fproducts%2Fd57f7ab7-4c81-4c88-a848-6f85c49d0a27%2F1907ebe4-e6ca-4aab-967e-c94f1dce1b43.png&q=75&w=1000 ' style='width: 100%; height: auto;'>
<img src=' https://images.svc.ui.com/?u=https%3A%2F%2Fcdn.ecomm.ui.com%2Fproducts%2Fd57f7ab7-4c81-4c88-a848-6f85c49d0a27%2Fed7eb5ea-3d28-4011-b3b2-702449132070.png&q=75&w=1000 ' style='width: 100%; height: auto;'>
<img src=' https://images.svc.ui.com/?u=https%3A%2F%2Fcdn.ecomm.ui.com%2Fproducts%2Fd57f7ab7-4c81-4c88-a848-6f85c49d0a27%2Fbedd2837-7a66-4db4-8748-abaa4962dbcd.png&q=75&w=1000 ' style='width: 100%; height: auto;'>
<img src=' https://images.svc.ui.com/?u=https%3A%2F%2Fcdn.ecomm.ui.com%2Fproducts%2Fd57f7ab7-4c81-4c88-a848-6f85c49d0a27%2F57bad013-853b-4268-b565-dc75d574a1a7.png&q=75&w=1000 ' style='width: 100%; height: auto;'>
</div>
Specification
Frequency Band: 60 GHz & 5 GHz dual-radio
Max Data Rate: 1.7 Gbps (60 GHz), 866.6 Mbps (5 GHz)
Antenna Gain: 17.2 dBi (60 GHz), 10 dBi (5 GHz)
TX Power: 19 dBm (60 GHz), 25 dBm (5 GHz)
Coverage: 500 m (1,640 ft) maximum range
Dimensions: ⌀140 × 90 mm
Mounting: Wall, pole
Weatherproofing: IPX6
Power Method: PoE (1 adapter included)
Interface: 1× GbE PoE RJ45 port
Spatial Streams: 2× (5 GHz MIMO)
WiFi Standards: 802.11ad (60 GHz), 802.11ac (5 GHz)
Operating Temperature: -40°C to 70°C
LED Alignment Indicator: Yes
Management: UniFi Console, Official UniFi Hosting, or Self-Hosted UniFi Network Server
Compatible accessories
Ubiquiti PoE+ Adapter (30W), Power UniFi PoE+ Devices,Reduce Dependency On PoE Switch Power,Provide A Gigabit LAN Connection (Renamed From U-PoE-AT)PoE Power Adapter

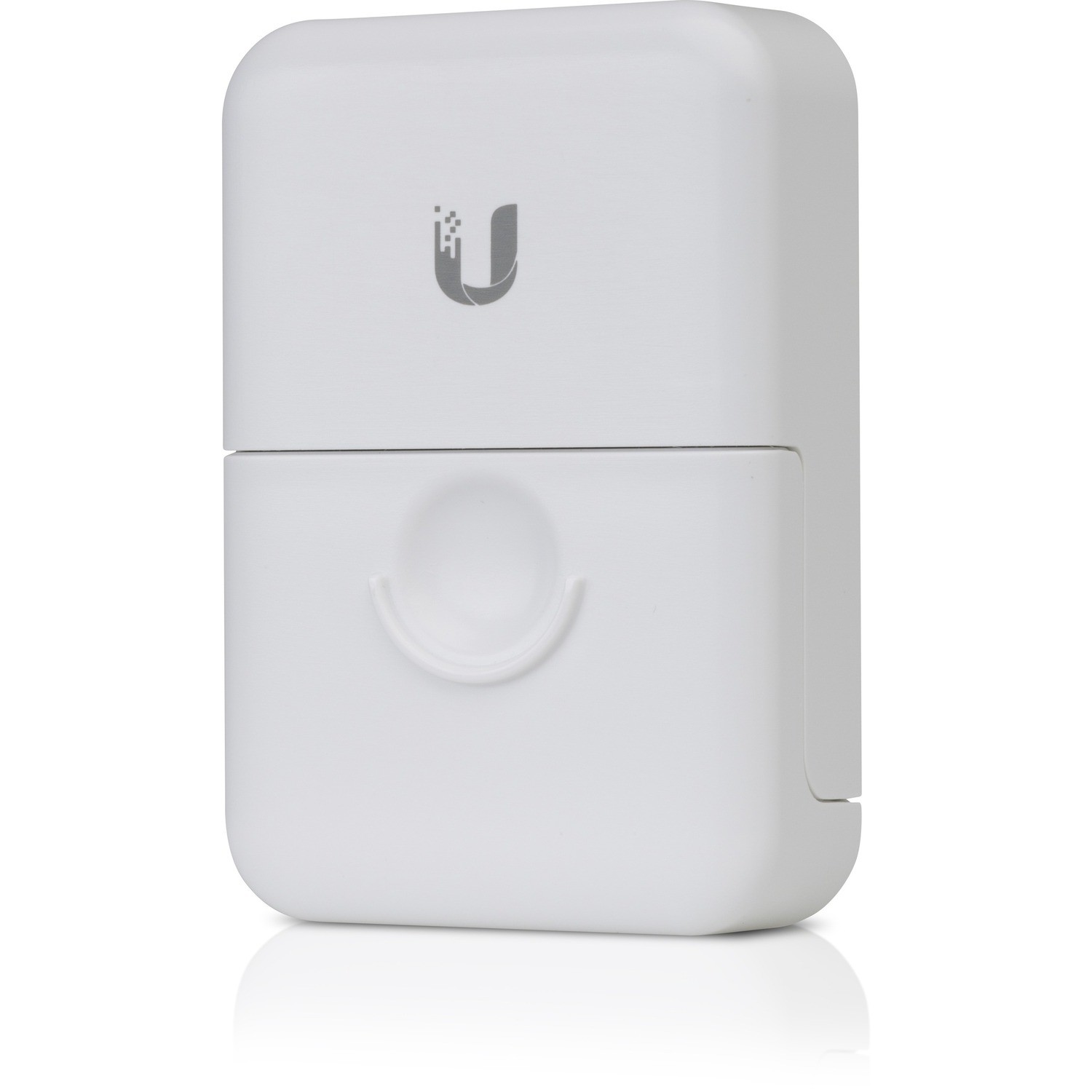

UBIQUITI ETHERNET SURGE PROTECTION OUTDOOR, UP TO 2.5 Gbps, PoE, IPX5, 1YREthernet Surge Protection · $35.64Network CableWall Mount Hardware
