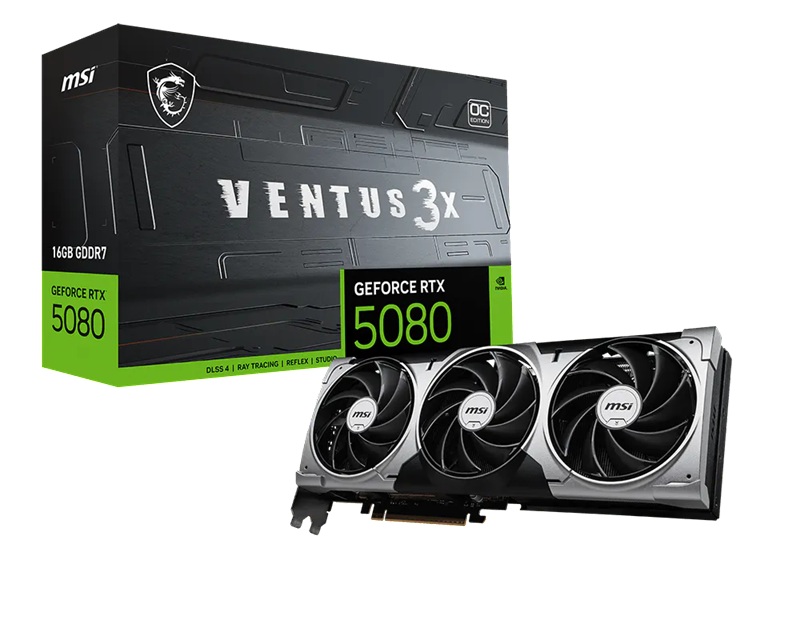

MSI nVidia GeForce RTX™ 5080 16G VENTUS 3X OC
Marketing Name GeForce RTX™ 5080 16G VENTUS 3X OC
Model Name G5080-16V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5080
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz
CUDA® CORES 10752 Units
Memory Speed 30 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 360 W
Power connectors 16-pin x 1
Recommended PSU 850 W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1084 g / 1576 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
