Professional 4K Display – High color accuracy, 1.5; wide color gamut, NTSC 90%; non-glare technology with 25% haze
Seamless Collaboration – Built-in touch display and Microsoft Whiteboard for real-time collaboration
Triple-Camera System – One wide-view lens and two tele-view lenses to provide clear views for all room participants
AI-Powered Video Technology – Auto Framing, Speaker Tracking, Multi-Speaker Tracking, and Intelligent Focus
Premium Audio – Built-in 16 beamforming microphone array, Built-in stereo speakers, AI-powered noise reduction, and full-duplex communication
Flexible Content Share – Wired 4K content sharing via HDMI In; wireless sharing via wireless dongle or MAXHUB Share application
BYOD – plug and play mode for easy switching between Teams Rooms mode and BYOD mode
Pivot Secured and Managed – Win 11 IoT SAC with MAXHUB Pivot supported
Specifications
Display

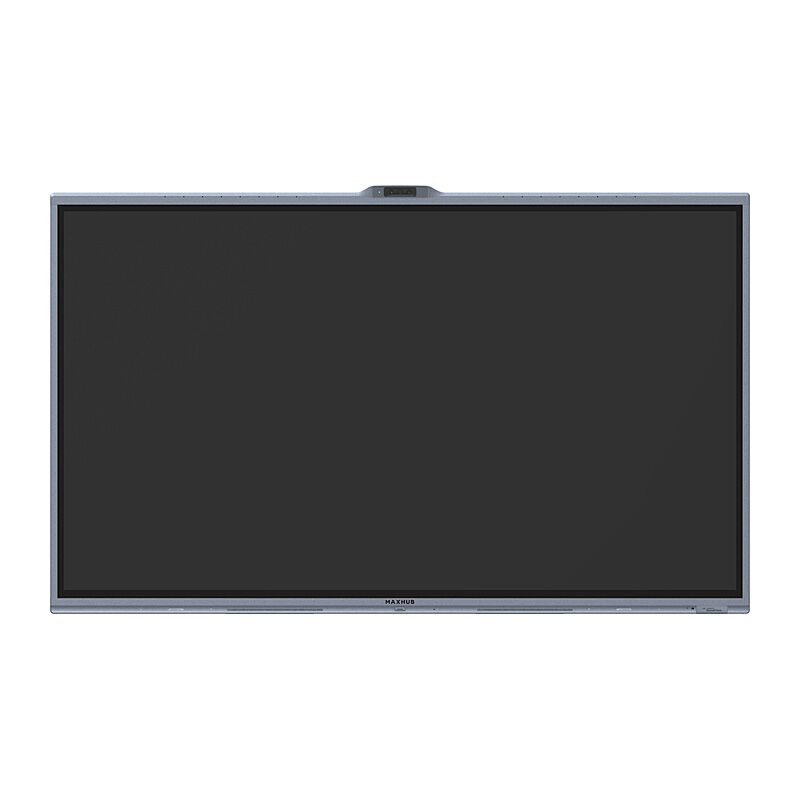

Model V555T
Screen Size (Inch) 55
Aspect Ratio 16:9
Panel ADS
Backlight DLED
Brightness (Typ.) 350 nits
Glass Zero parallax 3 mm thickness 9H Tempered
Surface Technology 25% haze Non-glare technology
Resolution 3840 × 2160
Refresh Rate 60 Hz
Contrast Ratio 1200:1 (typ.)
Viewing Angle (H × V) 178° / 178°
Color Gamut 90% NTSC
Display Orientation Landscape
Response Time 8 ms
Life Time > 50,000 hours
Operation Hours (Hours / Day) 16 / 7
Display Color 1.07 B (10 bit)
Color Accuracy Delta E ≤ 1.5
Sensor Ambient light sensor Motion Sensor
Pixel Pitch 0.315 (H) × 0.315 (V) mm / 0.0124 (H) × 0.0124 (V) inch
Display Area 1209.6 (H) × 680.4 (V) mm / 47.62 (H) × 26.79 (V) inch
Connectivity
I/O Ports (Interactive Display)
HDMI In (2.0) × 2 To connect an external source (disabled as default, and can be enabled on MAXHUB Align app.)
USB-A (2.0) × 1 To pair with wireless dongle-WT13M/ WT13S To connect keyboards or mouse, etc.
Touch (USB-B 2.0) × 1 To connect a personal laptop to access to XBoard's camera & microphone and get touch back (disabled as default, and can be enabled on MAXHUB Align app.)
Audio In × 1 To connect an external audio source to make XBoard a speaker
Audio Out × 1 3.5 mm mini-jack, to connect an external speaker system
RS232 × 1 9 pin
Mic In (RJ45) × 1 To connect up to a maximum of three UC BM45 as expansion speakerphones
Wireless Access Point Yes (for wireless presentation)
