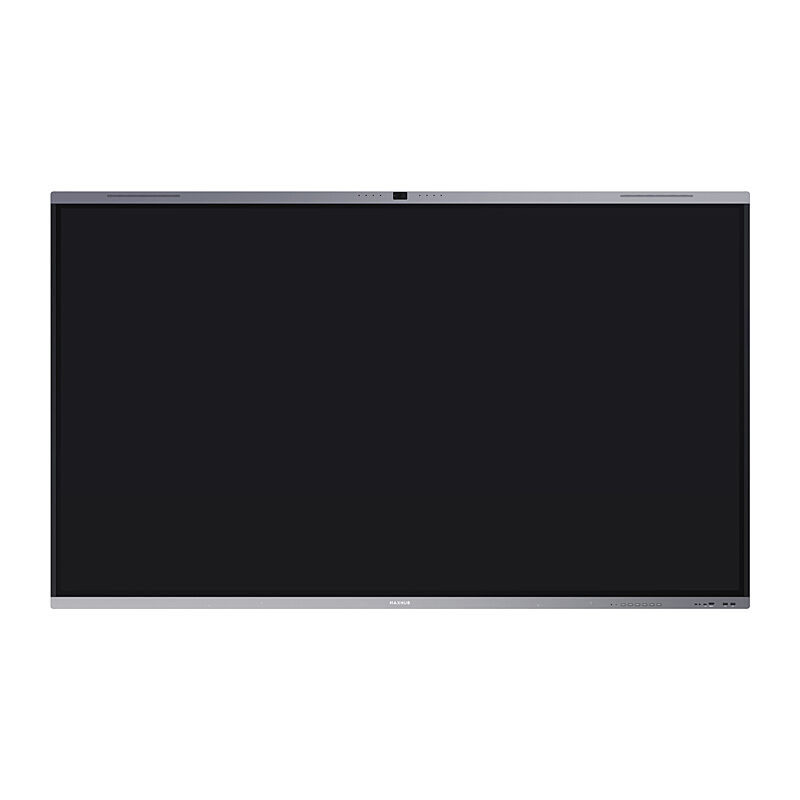

Name: MAXHUB U series U8640 86''
Brand: Maxhub
Price: 5488.18 AUD
Availability: PreOrder

Full specification

Prominent Display – 4K display, 10 bit color, high color accuracy
Classroom Care – Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification
SkyWave Sound System – 2.2 channel speaker, 2×12W + 2×25W maximum
Advanced Security System – Powered by Android 15 with Google EDLA certification
Peak Performance – Octa-core CPU, independent NPU, 16GB RAM, 256GB ROM
Convenient Connectivity – Full-function USB-C integrating 100W PD, video, audio, touch, and internet access features
Precious Touch – MAXHUB Think&Ink Technology, 50 touch points, ±0.5 mm touch accuracy
Comprehensive Software Suite – Versatile applications for education and collaboration

Touch Technology Infrared recognition
Touch Point 50 Points touch
Object Recognition Range 1.5 mm
Accuracy ± 0.5 mm
Response Time ≤ 2.5 ms
Writing Height ≤ 1 mm
MAXHUB Think&Ink Direct Annotation / Palm Rejection / Sharp Erase / Erase and Write Simultaneously / Multi-level Object Recognition / Single Pen Dual Color
System (Touch Return) Windows1/Windows0/Windows/Windows/ Android/Linux/Mac OS X/Chrome

Input HDMI IN × 4 Up to 4K@60Hz, HDCP 1.4&2.2&2.3, CEC, ARC (HDMI 1)
USB 2.0 × 1 For system upgrades
USB 3.0 × 4 Front×2 + Rear×2
Touch × 2 3.0×2
USB Type-C × 2 Video and audio transmission, touch, charging, LAN network sharing. Front: up to 65W PD; Rear: up to 100W PD
DP IN × 1 4K@30Hz, HDCP 1.4&2.2&2.3
AUDIO IN × 1 3.5mm jack
RS232 × 1 Baud rate 9600
RJ45 IN × 1 10M/100M/1000Mbps
TF Card Port × 1 Expandable up to 1TB
Output HDMI OUT × 1 Up to 4K@60Hz
AUDIO OUT × 1 3.5mm jack
USB Type-C × 1 Type-C OUT
SPDIF × 1 PCM output format
RJ45 OUT × 1 10M/100M/1000Mbps
OPS Slot Module slot × 1
Wi-Fi Module Slot Module slot × 1 Wi-Fi Module (SI07B)
Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz
Bluetooth 5.2

Quantity × 1
Resolution 50MP
FOV 115° DFOV, 101° HFOV, 85° VFOV
Feature Manual Mode Auto Framing Speaker Tracking Person Counting Random Election

Audio System SkyWave Sound System
Sound Channel 2.2
Speaker Power 2×8W+2×18W (output) 2×12W+2×25W (maximum)
Sound Pressure Level 88 dB (1W, 1m)
Microphone Quantity 8-mic array
Pick-up Angle 180°
Pick-up Range 0~12 m
Feature Intelligent Audio Fence AI Spatial Sound AEC (Auto Echo Cancellation) ANC (AI Noise Cancellation) AGC (Auto Gain Control)
