PFC SINEWAVE RM 1500VA/900W

Features

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• Critical/Non-critical Load Outlets
• Color LCD Panel
• USB Connectivity Port
• PowerPanel Management Software
• Surge and Spike Protection
• Short-depth Chassis Design
• Energy Saving Technology
• Pure Sine Wave Output
• Overload Protection
• Hot-swappable Batteries
• LED Status Indicator
• High-speed Ethernet Data Transmission
• SNMP/HTTP Remote Management Capability (Optional)
• Network Protection

Specifications

General

• Phase: Single Phase
• Form Factor: Rackmount
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS™ Bypass Technology
• Active PFC Compatibility: Yes

Input

• Nominal Input Voltage: 220 / 230 / 240 Vac
• Input Voltage Range: 165 ~ 271 Vac
• Adjustable Voltage Range: 189 ~ 207 Vac, 253 ~ 271 Vac
• Input Frequency: 50 ± 3 Hz / 60 ± 3 Hz (Auto-sensing)
• Rated Input Current: 10 A
• Input Connector Type: IEC C14
• Plug Style: Straight
• Detachable Power Cord Plug Type: IEC C14 x4, AU x2
• Power Cord Length: 6 ft (1.83 m)

Output

• Capacity: 1500 VA / 900 W
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage: 230 ± 5%
• On Battery Frequency: 50 ± 1% / 60 ± 1%
• Power Factor: 0.6
• Automatic Voltage Regulation: Single Boost
• Overload Protection: Internal Current Limiting, Circuit Breaker

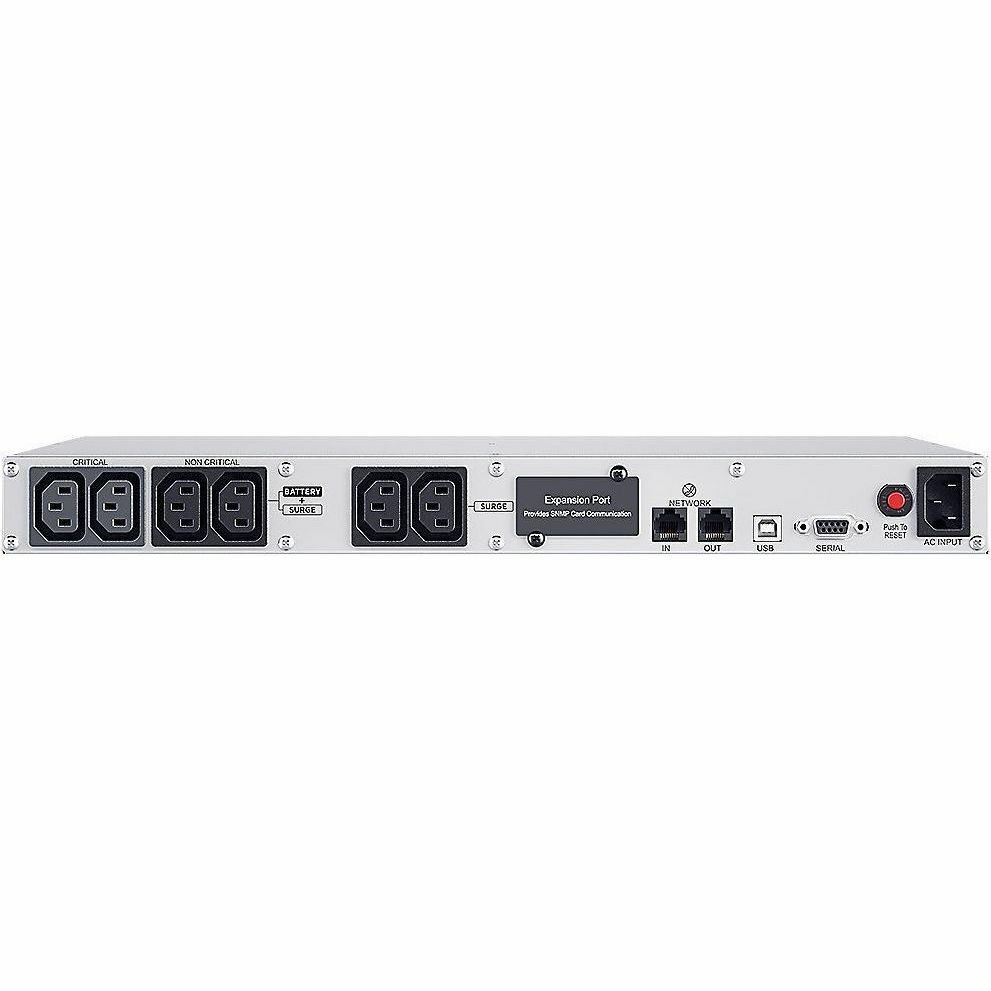

• Total Outlets: 6 (IEC C13)
• Battery & Surge Protected: 4
• Surge-Only Protected: 2
• Critical Load (CL): 2
• Non-critical Load (NCL): 2
• Typical Transfer Time: 7 ms (Max 10 ms)

Battery

• Runtime at Half Load: 9.3 min
• Runtime at Full Load: 1.4 min
• Typical Recharge Time: 8 hours (90% recovery)
• Start On Battery: Yes
• User-replaceable: Yes
• Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Battery Cartridge: RBP0026 (1 pc)

Surge Protection & Filtering

• Surge Suppression: 450 Joules
• Network Protection RJ45: 1-in, 1-out

Management & Communications

• LCD Panel: Color LCD
• LCD Information: Power Status, Battery Status, Load Status, Fault & Warning
• LCD Settings: Alarm, Input & Output, Battery
• LED Indicators: Power On
• USB Port: 1 (HID Compliant)
• Serial Port: Contact Signals
• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
• Management Cable: Power Cord x2, USB Cable x1
• Ethernet Data Transmission: Up to 1Gbps
• Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Optional (RMCARD205)
• Cloud Service: PowerPanel (90 Days Free Trial)

Physical

• Enclosure: Metal
• Color: Silver
• Rackmount Ears: Yes
• Size (UPS Module): 433 x 44 x 388.7 mm (17.05 x 1.73 x 15.3 in)
• Weight: 14.99 kg (33.05 lbs)
• Installed Rack Height: 1U
• Shipping Dimensions: 530 x 158 x 494 mm (20.87 x 6.22 x 19.45 in)
• Shipping Weight: 17.06 kg (37.61 lbs)

Environmental

• Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
• Operating Humidity: 0 ~ 95% (Non-condensing)
• Operating Elevation: 0–3,000 m (0–9,843 ft)
• Storage Temperature: -5 ~ 45 °C (5 ~ 113 °F)
• Storage Humidity: 0 ~ 95% (Non-condensing)
• Storage Elevation: 0–15,000 m (0–49,213 ft)
• Online Thermal Dissipation: 30.7 BTU/hr

Certifications

• CE, RCM
• RoHS Compliant
