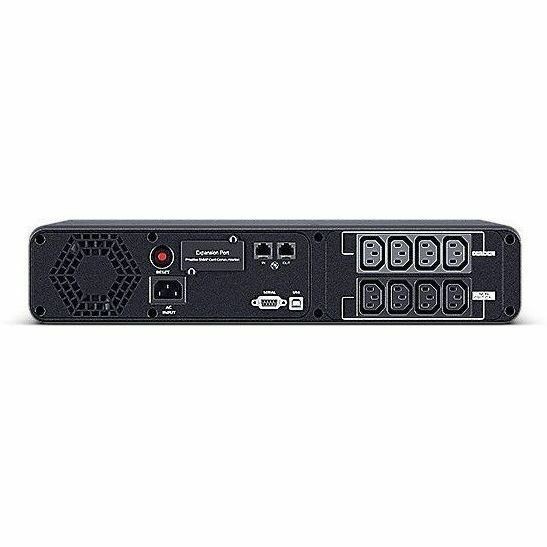

PFC SINEWAVE RM 1600VA/720W

Features

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• Critical/Non-critical Load Outlets
• Color LCD Panel
• USB Connectivity Port
• PowerPanel Management Software
• Surge and Spike Protection
• Network Protection
• Energy Saving Technology
• Pure Sine Wave Output
• Overload Protection
• Hot-swappable Batteries
• LED Status Indicator
• High-speed Ethernet Data Transmission
• SNMP/HTTP Remote Management Capability (Optional)
• EMI and RFI Filtration
• Short-depth Chassis Design

Specifications

General

• Phase: Single Phase
• Form Factor: Rackmount
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS™ Bypass Technology
• Active PFC Compatibility: Yes

Input

• Nominal Voltage: 230 Vac
• Voltage Range: 169 ~ 271 Vac
• Frequency: 50 ± 3 Hz / 60 ± 3 Hz
• Frequency Detection: Auto-sensing
• Rated Current: 10 A
• Connector Type: IEC C14
• Detachable Power Cord: IEC C14 x 1
• Cord Length: 6 ft / 1.8 m

Output

• Capacity: 1600 VA / 1000 W
• Waveform: Pure Sine Wave
• Voltage: 230 ± 5 %
• Frequency: 60 ± 1% / 50 ± 1%
• Power Factor: 0.625
• AVR: Single Boost
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Total Outlets: 8 (IEC C13 x 8)
• Battery & Surge Protected: 8
• Critical Load Outlets: 4
• Non-critical Load Outlets: 4

Battery

• Runtime: 10.4 min (Half Load), 2.5 min (Full Load)
• Recharge Time: 8 hours (to 90%)
• User-replaceable / Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Battery Cartridge: RBP0166 (x1)

Protection & Network

• Surge Suppression: 900 Joules
• EMI/RFI Filtration: Yes
• Network Protection RJ45: 1-in, 1-out

Management & Indicators

• LCD Panel: Color LCD (Power, Battery, Load, Fault & Warning)
• LED Indicators: Power On
• USB Port: HID Compliant (x1)
• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
• Management Cables: Power Cord x1, USB Cable x1
• Ethernet Speed: Up to 1Gbps
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes (Optional RMCARD205)
• PowerPanel Cloud Service: 90 Days Free Trial

Physical

• Enclosure: Plastic, Black, Rackmount Ears Included
• Dimensions (WxHxD): 433 x 86 x 274 mm
• Weight: 12.56 kg
• Shipping Dimensions: 523 x 162 x 374 mm
• Shipping Weight: 13.92 kg

Environmental

• Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
• Operating Humidity: 0 ~ 95% (Non-condensing)
• Operating Elevation: 0-3,000 m (0-9,843 ft)
• Storage Temperature: -15 ~ 45 °C (5 ~ 113 °F)
• Storage Humidity: 0 ~ 95% (Non-condensing)
• Storage Elevation: 0-15,000 m (0-49,213 ft)
• Thermal Dissipation: 20.5 BTU/hr

Certifications

• CE
• RoHS
