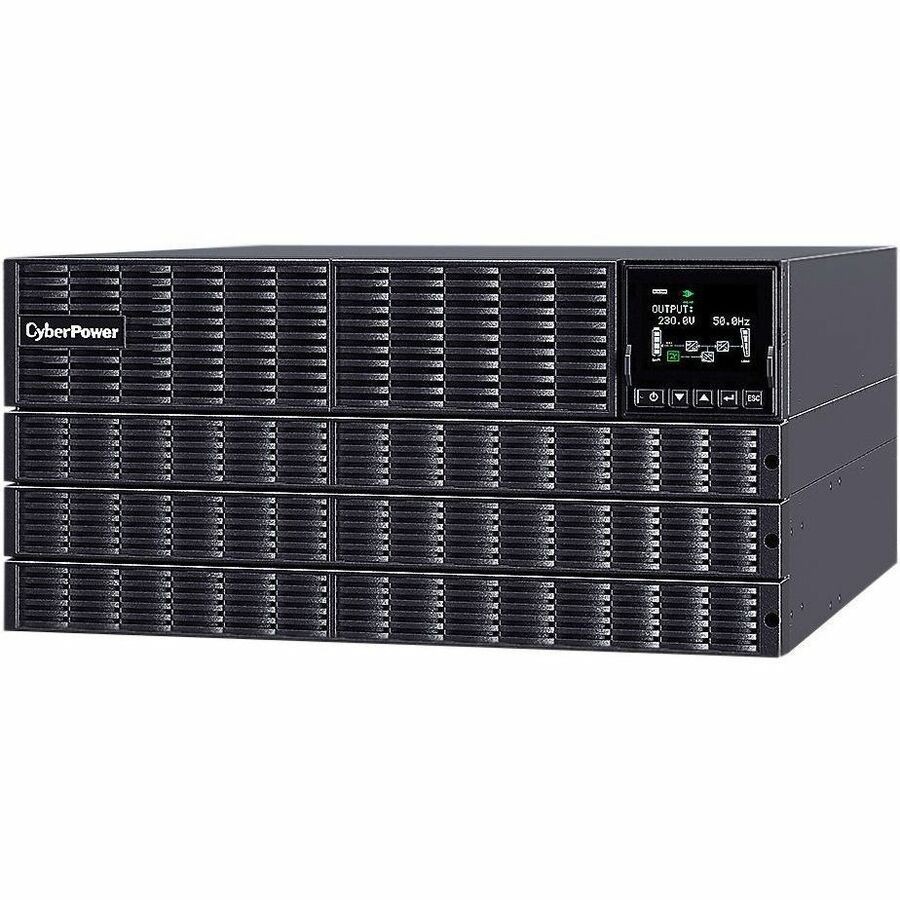

CP 10000VA/10000W Rack UPS

CP 10000VA/10000W Rack UPS

<h2>Specifications:</h2> <ul> <li>Phase: Single Phase</li> <li>Form Factor: Rackmount / Tower</li> <li>UPS Topology: Online Double Conversion</li> <li>Energy Saving Technology: Online ECO Mode Efficiency > 98%</li> <li>Active PFC Compatibility: Yes</li> <li>Generator Compatibility: Yes</li> <li>Nominal Input Voltage ( Vac ): 230</li> <li>Input Voltage Range ( Vac ): 110 - 300</li> <li>Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 144 Vac | 0-75% Load for 145 - 179 Vac | 0-100% Load for 180 - 300 Vac</li> <li>Input Frequency ( Hz ): 50 - 60Hz</li> <li>Input Frequency Detection: Auto-sensing</li> <li>Rated Input Current ( A ): 49.5</li> <li>Input Power Factor: 0.99</li> <li>Input Connector Type: Hardwire Terminal Block</li> <li>Capacity (VA): 10000</li> <li>Capacity (Watts): 10000</li> <li>On Battery Waveform: Pure Sine Wave</li> <li>On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%</li> <li>Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse</li> <li>Overload Protection (Line Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec</li> <li>Overload Protection (Battery Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec</li> <li>Overload Protection (Bypass Mode): 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately</li> <li>Harmonic Distortion (Linear Load): THD?1.5%</li> <li>Harmonic Distortion (Non-linear Load): THD?3%</li> <li>Internal Bypass: Automatic Bypass / Manual Bypass</li> <li>Maintenance Bypass: Yes</li> <li>Outlet(s) - Total: 9</li> <li>Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 | IEC C19 x 4</li> <li>Typical Transfer Time ( ms ): 0</li> <li>Runtime at Half Load ( min ): 11.2</li> <li>Runtime at Full Load ( min ): 2.9</li> <li>Typical Recharge Time ( Hours ): 4</li> <li>Maximum Charging Current ( A ): 4</li> <li>Adjustable Charging Current ( A ): 1 - 4</li> <li>Start On Battery: Yes</li> <li>Smart Battery Management (SBM): Yes</li> <li>User-replaceable: Yes</li> <li>Hot-swappable: Yes</li> <li>Compatible Extended Battery Module (EBM): BPS240V9ART3U</li> <li>Max. EBM Quantity ( pcs ): 10</li> <li>Surge Suppression ( Joules ): 1335</li> <li>EMI/RFI Filtration: Yes</li> <li>LCD Orientation: Rotatable LCD – Manual</li> <li>Tiltable LCD Panel: 15 degrees</li> <li>HID Compliant USB Port(s): 1</li> <li>Serial Port: RS232</li> <li>Dry Contact (with Relay): Yes</li> <li>Emergency Power Off (EPO) Port: Yes</li> <li>Power Management Software: PowerPanel Business (Recommended)</li> <li>SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205</li> <li>Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included</li> <li>Enclosure Construction: Metal</li> <li>Rackmount Rail: Yes</li> <li>Rackmount Ears: Yes</li> <li>Dimensions: 433 x 213.5 x 661mm</li> <li>Weight: 80kg</li> <li>Installed Rack Height ( U ): 5</li> <li>Online Thermal Dissipation ( BTU/hr ): 2047</li> <li>Audible Noise at 1.0M from Surface of Unit: 62 dBA</li> <li>Certifications: CE / RoHS</li> </ul> <h2>Features:</h2> <ul> <li>Online (Double Conversion) UPS Topology</li> <li>High Output Power Factor</li> <li>Overload Protection</li> <li>Maintenance Bypass Switch</li> <li>Extended Battery Module Auto-detection</li> <li>User-replaceable Batteries</li> <li>Tiltable LCD Panel</li> <li>Relay-type Dry Contact</li> <li>SNMP/HTTP Remote Management Capability (Optional)</li> <li>Rack/Tower Convertible Configurations</li> <li>ECO Mode</li> <li>Pure Sine Wave Output</li> <li>Zero Transfer Time</li> <li>Extended Battery Module (EBM)</li> <li>Adjustable Charging Current</li> <li>Color LCD Panel</li> <li>Emergency Power Off (EPO) Port</li> <li>PowerPanel Management Software</li> <li>Built-in Remote Cloud Card by Ethernet</li> </ul> <h2>What's in the box?</h2> <ul> <li>1 x OLS10KERT5U UPS</li> <li>1 x External Maintenance Bypass PDU</li> <li>1 x Rackmount Rail</li> <li>1 x Rackmount Ears</li> <li>1 x Rail Kit</li> <li>1 x Screw Kit</li> <li>1 x Power Cord</li> <li>1 x USB Cable</li> <li>1 x Phone Line</li> <li>1 x User Manual</li> </ul>
