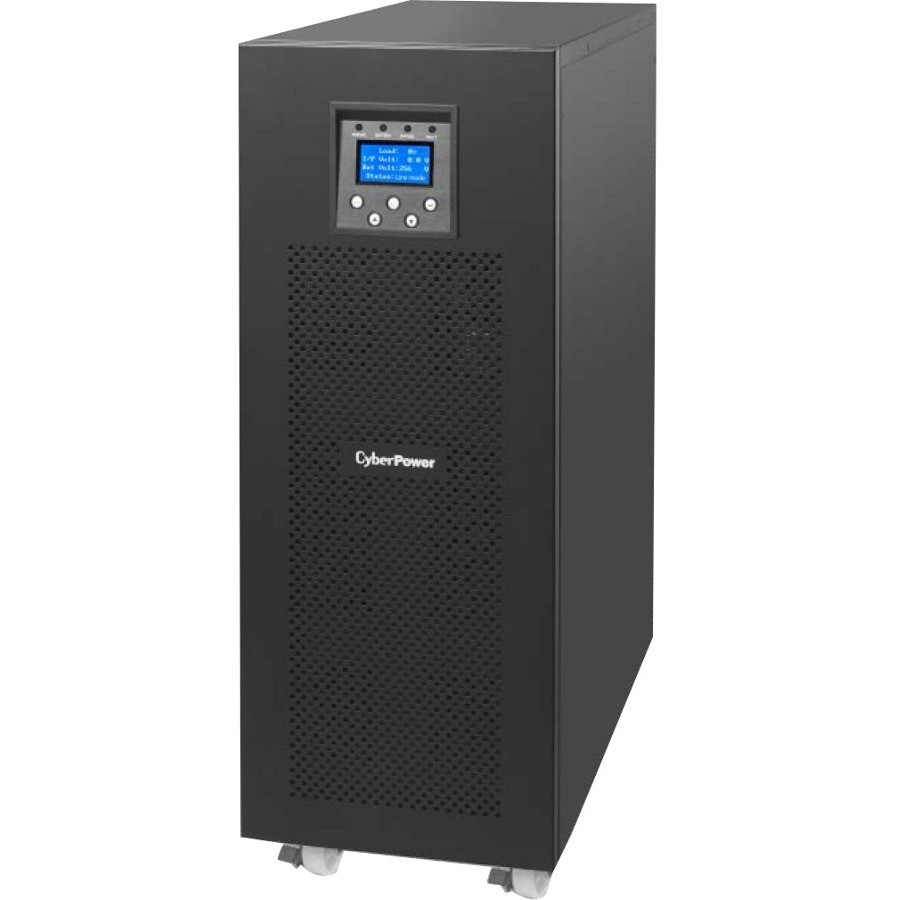

CP 10000VA/9000W Tower UPS

CP 10000VA/9000W Tower UPS

<h2>Specifications:</h2> <ul> <li>Phase: Single Phase</li> <li>Form Factor: Tower</li> <li>UPS Topology: Online Double Conversion</li> <li>Energy Saving Technology: Online ECO Mode Efficiency > 96%</li> <li>Active PFC Compatibility: Yes</li> <li>Generator Compatibility: Yes</li> <li>Nominal Input Voltage ( Vac ): 230</li> <li>Input Voltage Range ( Vac ): 110 - 276</li> <li>Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac</li> <li>Input Frequency ( Hz ): 50 ± 5 | 60 ± 6</li> <li>Input Frequency Detection: Auto-sensing</li> <li>Rated Input Current ( A ): 45.5</li> <li>Input Power Factor: 0.99</li> <li>Input Connector Type: Hardwire Terminal Block</li> <li>Capacity (VA): 10000</li> <li>Capacity (Watts): 9000</li> <li>On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1%</li> <li>Power Factor: 0.9</li> <li>ECO Mode Voltage Tolerance: ± 10 %</li> <li>Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse</li> <li>Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec</li> <li>Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec</li> <li>Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec</li> <li>Harmonic Distortion (Linear Load): THD?2%</li> <li>Harmonic Distortion (Non-linear Load): THD?5%</li> <li>Maintenance Bypass: Yes</li> <li>Outlet(s) - Total: 1</li> <li>Outlet Type: Hardwire Terminal Block x 1</li> <li>Runtime at Half Load ( min ): 11</li> <li>Runtime at Full Load ( min ): 4</li> <li>Typical Recharge Time ( Hours ): 7</li> <li>Maximum Charging Current ( A ): 1</li> <li>Start On Battery: Yes</li> <li>Smart Battery Management (SBM): Yes</li> <li>User-replaceable: No</li> <li>Compatible Extended Battery Module (EBM): BPSE240V47AOA</li> <li>Max. EBM Quantity ( pcs ): 15</li> <li>Surge Suppression ( Joules ): 445</li> <li>EMI/RFI Filtration: Yes</li> <li>HID Compliant USB Port(s): 1</li> <li>Emergency Power Off (EPO) Port: Yes</li> <li>Management Cable ( pcs ): USB Cable x1</li> <li>Power Management Software: PowerPanel Business (Recommended)</li> <li>SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205</li> <li>Enclosure Construction: Metal</li> <li>Dimensions: 260 x 708 x 550mm</li> <li>Weight: 86kg</li> <li>Online Thermal Dissipation ( BTU/hr ): 2672</li> <li>Audible Noise at 1.5M from Surface of Unit: 60 dBA</li> <li>Certifications: CE / RoHS</li> </ul> <h2>Features:</h2> <ul> <li>Online (Double Conversion) UPS Topology</li> <li>Generator Compatible</li> <li>Maintenance Bypass Switch</li> <li>Smart Battery Management (SBM)</li> <li>Surge and Spike Protection</li> <li>LCD Status Display</li> <li>PowerPanel Management Software</li> <li>ECO Mode</li> <li>Overload Protection</li> <li>Zero Transfer Time</li> <li>Extended Battery Module (EBM)</li> <li>EMI and RFI Filtration</li> <li>Emergency Power Off (EPO) Port</li> <li>SNMP/HTTP Remote Management Capability (Optional)</li> </ul> <h2>What's in the box?</h2> <ul> <li>1 x OLS10000E UPS</li> <li>1 x Parallel Port Cover Plate</li> <li>1 x Terminal Cover</li> <li>1 x Terminal Splices</li> <li>1 x USB Cable</li> <li>1 x User Manual</li> </ul>
